046984 Series
Manufacturer: Molex
Beta
⌘K

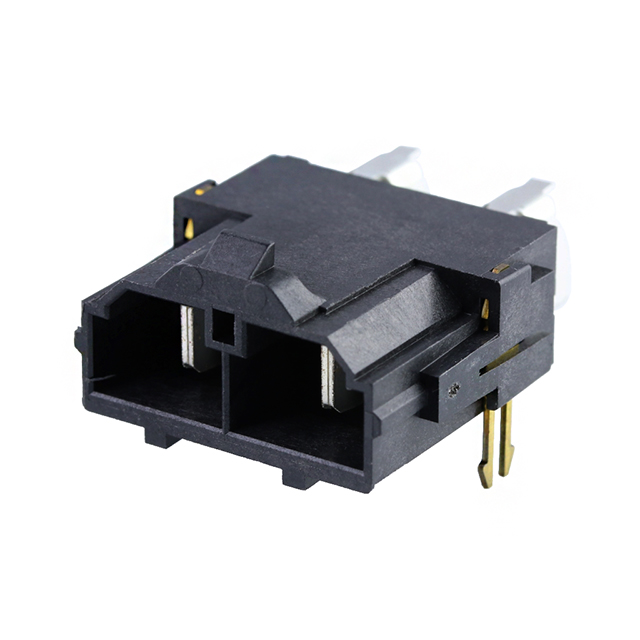

CONN HEADER R/A 2POS 10MM
| Part | Fastening Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Length - Post | Contact Length - Post | Contact Shape | Insulation Color | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Type | Termination | Shrouding | Material Flammability Rating | Contact Material | Contact Finish - Post | Number of Rows | Style | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Locking Ramp | All | 10 mm | 0.394 in | 0.425 in | 10.8 mm | 2 | 2.54 µm | 100 µin | Automotive General Purpose Industrial Medical Telecommunications | 3.5 mm | 0.138 in | Rectangular | Black | Header | 30 Áin | 0.76 Ám | Through Hole Right Angle | Male Pin | Solder | Shrouded - 4 Wall | UL94 V-0 | Copper | Tin | 1 | Board to Cable/Wire | Gold |
