3SU1103 Series

Manufacturer: Siemens

Catalog

ILLUMINATED PUSHBUTTON, MOM, GRN

Part	Electrical Life	Mechanical Life	Type	Ingress Protection	Termination Style	Switch Function	Actuator Type	Mounting Type	Voltage Rating - AC	Illumination Type, Color	Illumination Voltage (Nominal)	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Approval Agency	Depth Behind Flange	Number of Positions	Illumination

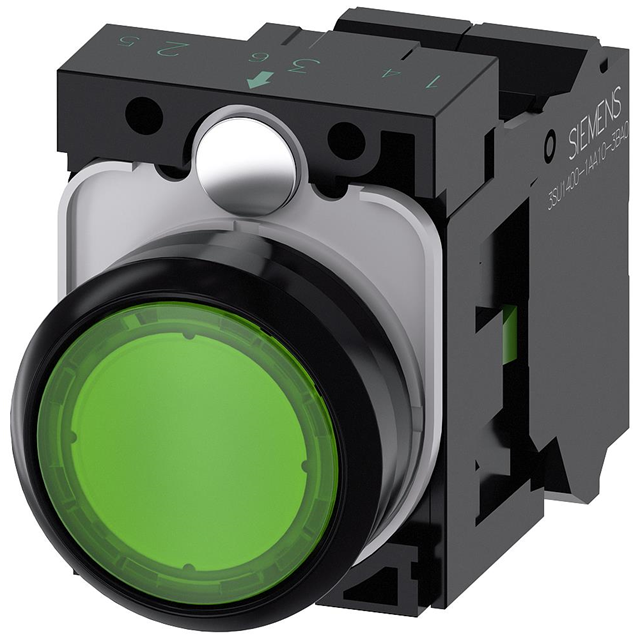

Siemens 3SU11030AB403BA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Spring Terminal	Off-Mom	Button Round	Panel Mount Front	500 V	Green LED	110 VAC	Green	-25 °C	70 °C	SPST-NO	10 A	500 V	22.3 mm

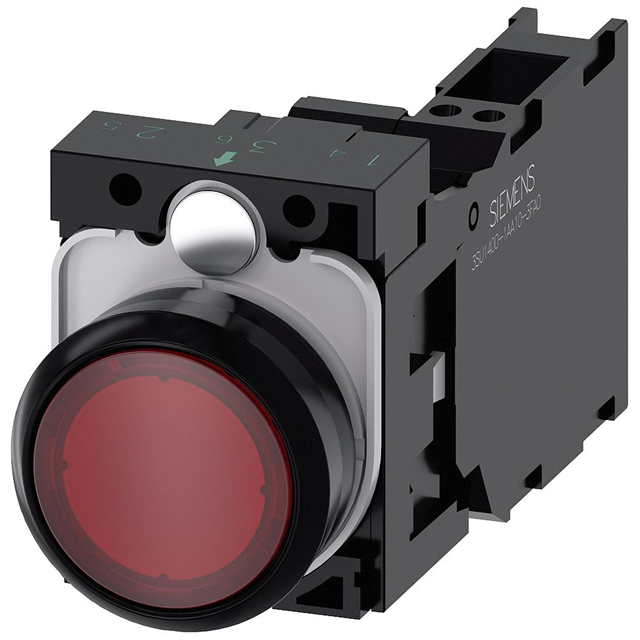

Siemens 3SU11030AB203FA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Spring Terminal	Off-Mom On-Mom	Button Round	Panel Mount Front	500 V	LED Red	110 VAC	Red	-25 °C	70 °C	DPST-NO/NC	10 A	500 V	22.3 mm
Siemens 3SU11030AB703FA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Spring Terminal	Off-Mom On-Mom	Button Round	Panel Mount Front	500 V	LED White	110 VAC	Clear	-25 °C	70 °C	DPST-NO/NC	10 A	500 V	22.3 mm

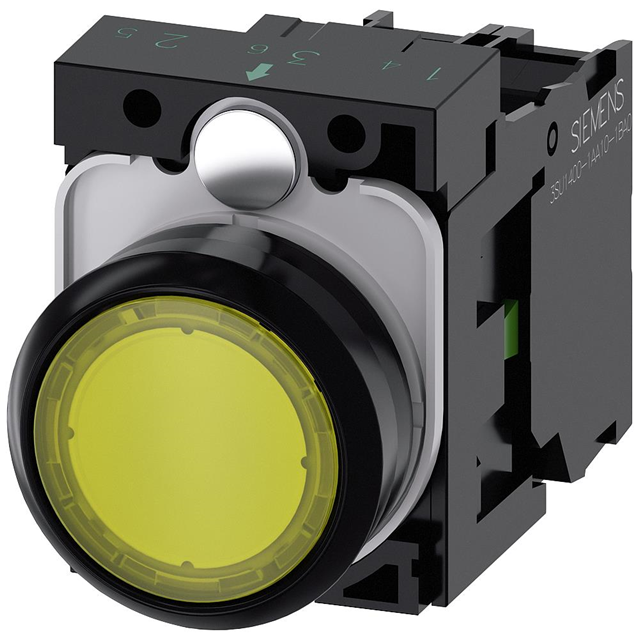

Siemens 3SU11030AB301BA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Screw Terminal	Off-Mom	Button Round	Panel Mount Front	500 V	LED Yellow	110 VAC	Yellow	-25 °C	70 °C	SPST-NO	10 A	500 V	22.3 mm
Siemens 3SU11030AB701BA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Screw Terminal	Off-Mom	Button Round	Panel Mount Front	500 V	LED White	110 VAC	Clear	-25 °C	70 °C	SPST-NO	10 A	500 V	22.3 mm

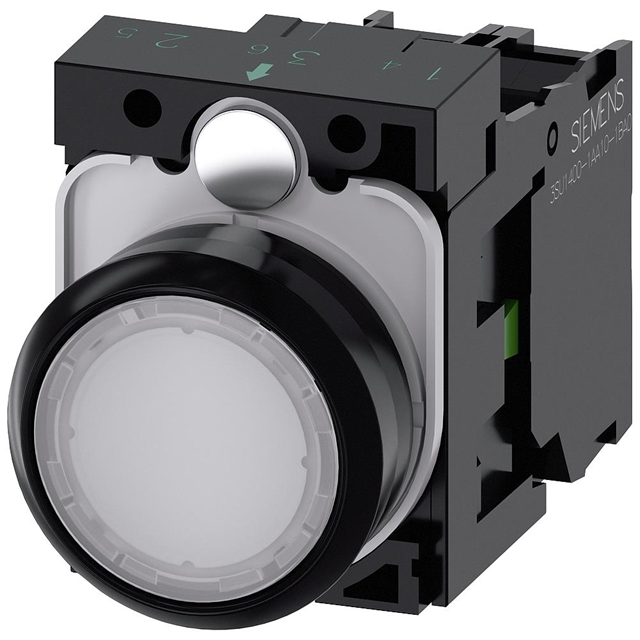

Siemens 3SU11030AB601BA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Screw Terminal	Off-Mom	Button Round	Panel Mount Front	500 V	LED White	110 VAC	White	-25 °C	70 °C	SPST-NO	10 A	500 V	22.3 mm
Siemens 3SU11030AB503FA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Spring Terminal	Off-Mom On-Mom	Button Round	Panel Mount Front	500 V	Blue LED	110 VAC	Blue	-25 °C	70 °C	DPST-NO/NC	10 A	500 V	22.3 mm

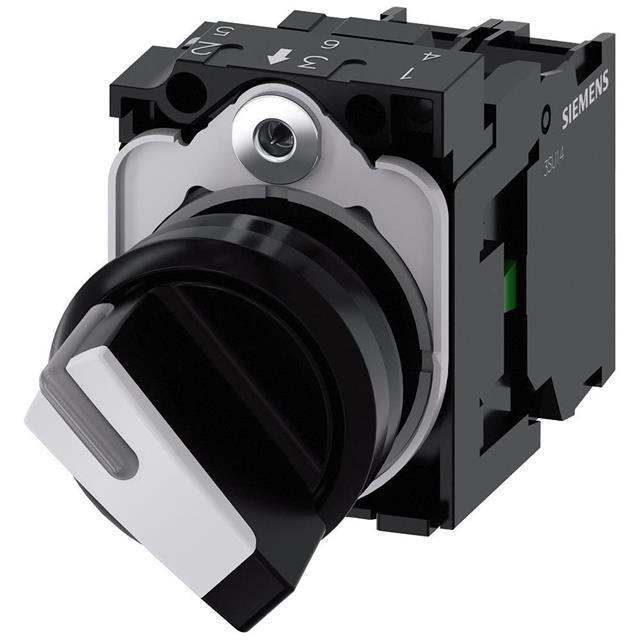

Siemens 3SU11032BF641BA0	10000000 Cycles	1000000 Cycles	Standard	IP66 IP67 IP69K	Screw Terminal	Off-On		Panel Mount	500 V				-25 °C	70 °C	SPST-NO	10 A	500 V	22.3 mm	CCC CE CSA EAC UL	49.7 mm	2	Non-Illuminated

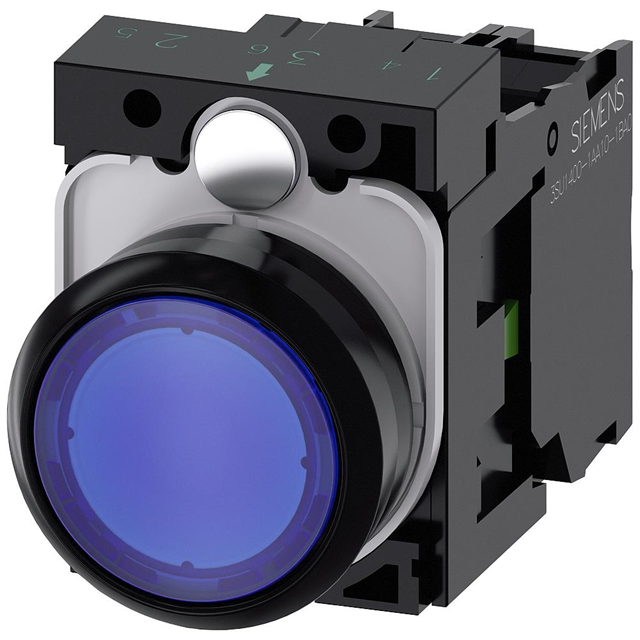

Siemens 3SU11030AB501BA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Screw Terminal	Off-Mom	Button Round	Panel Mount Front	500 V	Blue LED	110 VAC	Blue	-25 °C	70 °C	SPST-NO	10 A	500 V	22.3 mm

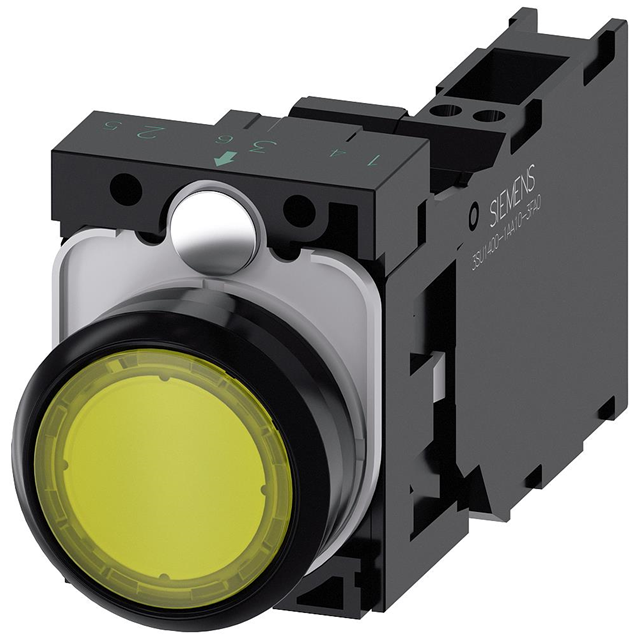

Siemens 3SU11030AB303FA0	10000000 Cycles	3000000 Cycles	Illuminated Standard	IP66 IP67 IP69K	Spring Terminal	Off-Mom On-Mom	Button Round	Panel Mount Front	500 V	LED Yellow	110 VAC	Yellow	-25 °C	70 °C	DPST-NO/NC	10 A	500 V	22.3 mm
