6717S Series

Catalog

HOOK-UP SOLID 14AWG SLATE 1000'

Part	Cable Type	Ratings	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 6717S SL001	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C	304.8 m	1000 ft	Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Slate
ALPHA WIRE 6717S VI005	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C			Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Violet	100 ft	30.5 m

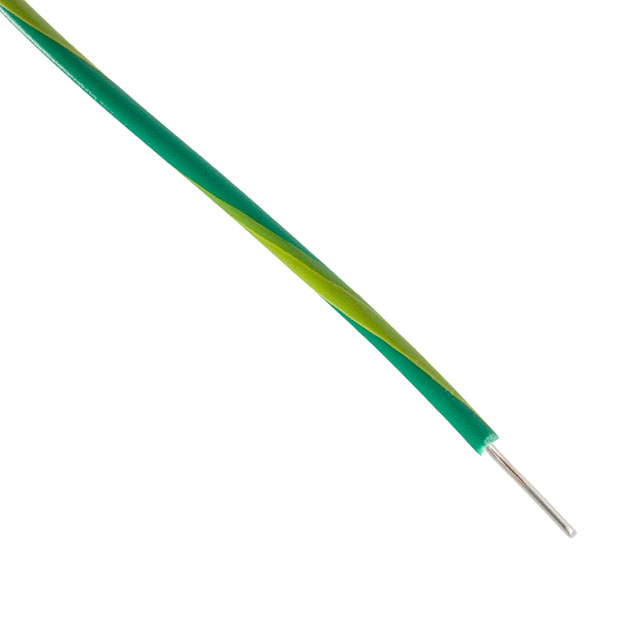

ALPHA WIRE 6717S GY001	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C	304.8 m	1000 ft	Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Green Yellow Stripe
ALPHA WIRE 6717S BR001	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C	304.8 m	1000 ft	Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Brown
ALPHA WIRE 6717S BK001	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C	304.8 m	1000 ft	Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Black
ALPHA WIRE 6717S GR001	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C	304.8 m	1000 ft	Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Green
ALPHA WIRE 6717S OR001	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C	304.8 m	1000 ft	Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Orange
ALPHA WIRE 6717S RD005	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C			Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Red	100 ft	30.5 m
ALPHA WIRE 6717S OR005	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C			Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Orange	100 ft	30.5 m
ALPHA WIRE 6717S SL005	Hook-Up	UL Style 11028	Solid	-40 C	105 ░C			Copper Tinned	14.5 AWG	0.086 in	2.18 mm	Polyphenylene Ether Modified (mPPE)	0.011 "	0.28 mm	600 V	Slate	100 ft	30.5 m
