1703808 Series

Catalog

CONN PLUG HSG 4POS 6.00MM

Part	Contact Termination	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Number of Rows	Number of Positions	Row Spacing [Max]	Row Spacing [Max]	Color	Note	Features	Contact Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]

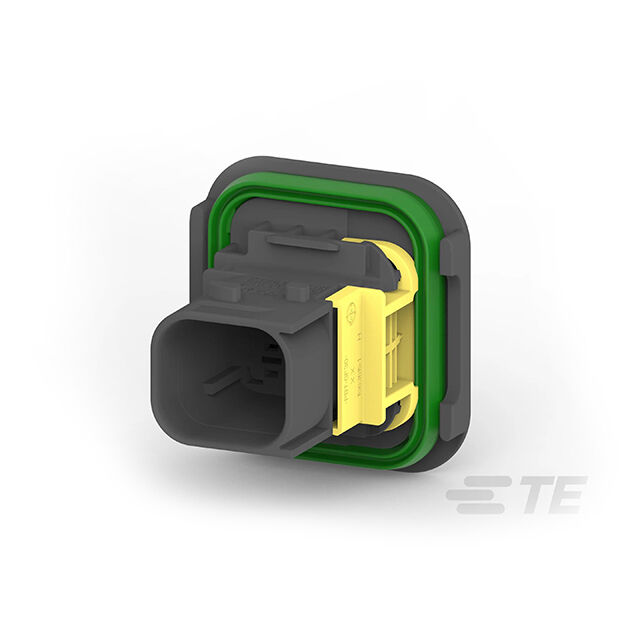

TE Connectivity Raychem Cable Protection 1-1703808-1	Crimp	0.236 in	6 mm	Plug	Slide-On	2	4	0.236 in	6 mm	Black	Contacts Not Included	Mounting Flange Sealed	Tab

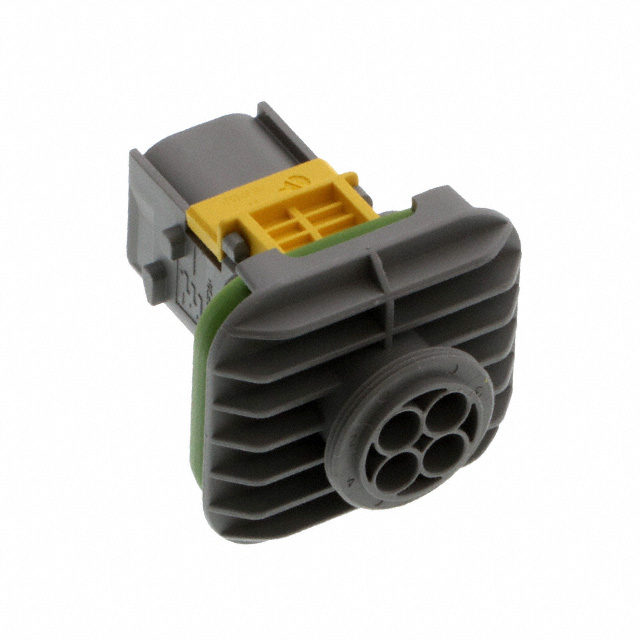

TE Connectivity Raychem Cable Protection 2-1703808-1	Crimp	0.236 in	6 mm	Plug	Slide-On	2	4	0.236 in	6 mm	Gray	Contacts Not Included	Mounting Flange Sealed	Tab	Polybutylene Terephthalate (PBT) Glass Filled	140 °C	-40 °C
TE Connectivity Raychem Cable Protection 4-1703808-1	Crimp	0.236 in	6 mm	Plug	Slide-On	2	4	0.236 in	6 mm	Blue	Contacts Not Included	Mounting Flange Sealed	Tab	Polybutylene Terephthalate (PBT) Glass Filled	140 °C	-40 °C
