Rta0 Series Series

Coded Rotary Switches Rotary 1–4 Poles Coded Rotary Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Coded Rotary Switches Rotary 1–4 Poles Coded Rotary Switch

Part	Mounting Type	Angle of Throw	Voltage Rating - AC	Contact Timing	Actuator Length [x]	Contact Finish	Current Rating (Amps)	Index Stops	Termination Style	Depth Behind Panel [z]	Number of Positions	Voltage Rating - DC	Contact Material	Panel Cutout Dimensions [diameter]	Number of Decks [custom]	Circuit per Deck	Number of Poles per Deck	Circuit per Deck [custom]	Actuator Type	Actuator Length	Circuit per Deck [custom]	Actuator Type [diameter]
Littelfuse/Commercial Vehicle Products RTAP3EW12M25NP	Panel Mount Through Hole	30 °	25 V	Non-Shorting	25 mm	Gold	20 mA	Continuous	PC Pin	12.6 mm	12	25 V	Brass	10.2 mm	1
Littelfuse/Commercial Vehicle Products RTAP4EW10M25NS	Panel Mount Through Hole	36 °	60 V	Non-Shorting	25 mm	Silver	150 mA	Continuous	PC Pin	12.6 mm	10	60 VDC	Brass	10.2 mm	1
Littelfuse/Commercial Vehicle Products RTAP4ES03M25NS	Panel Mount Through Hole	36 °	60 V	Non-Shorting	25 mm	Silver	150 mA	Fixed	PC Pin	12.6 mm		60 VDC	Brass	10.2 mm	1
Littelfuse/Commercial Vehicle Products RTAP31S12W25NP	Through Hole	30 °	25 V	Non-Shorting	25 mm	Gold	20 mA	Fixed	PC Pin	12.6 mm	12	25 V	Brass		1	SP12T	1
Littelfuse/Commercial Vehicle Products RTAP34S02M25NS	Panel Mount Through Hole	30 °	60 V	Non-Shorting	25 mm	Silver	150 mA	Fixed	PC Pin	12.6 mm	2	60 VDC	Brass	10.2 mm	1			4PDT
Littelfuse/Commercial Vehicle Products RTAP31S10WFLSS	Through Hole	30 °	60 V	Non-Shorting		Silver	150 mA	Fixed	PC Pin	12.6 mm	10	60 VDC	Brass		1	SP10T	1		Screwdriver Slot	Flush
Littelfuse/Commercial Vehicle Products RTAP32S06W25NP	Through Hole	30 °	25 V	Non-Shorting	25 mm	Gold	20 mA	Fixed	PC Pin	12.6 mm	6	25 V	Brass		1		2				DP6T
Littelfuse/Commercial Vehicle Products RTAP41W10W25NS	Through Hole	36 °	60 V	Non-Shorting	25 mm	Silver	150 mA	Continuous	PC Pin	12.6 mm	10	60 VDC	Brass		1	SP10T	1
Littelfuse/Commercial Vehicle Products RTAP3ES11W25FS	Through Hole	30 °	60 V	Non-Shorting	25 mm	Silver	150 mA	Fixed	PC Pin	12.6 mm	11	60 VDC	Brass		1				Flatted			6 mm
Littelfuse/Commercial Vehicle Products RTAP31S05M25NS	Panel Mount Through Hole	30 °	60 V	Non-Shorting	25 mm	Silver	150 mA	Fixed	PC Pin	12.6 mm		60 VDC	Brass	10.2 mm	1	SP5T	1

Catalog

Coded Rotary Switches Rotary 1–4 Poles Coded Rotary Switch

Key Features

• PCB or hand soldering versions

• Bushing mounting

• Multiple poles

Description

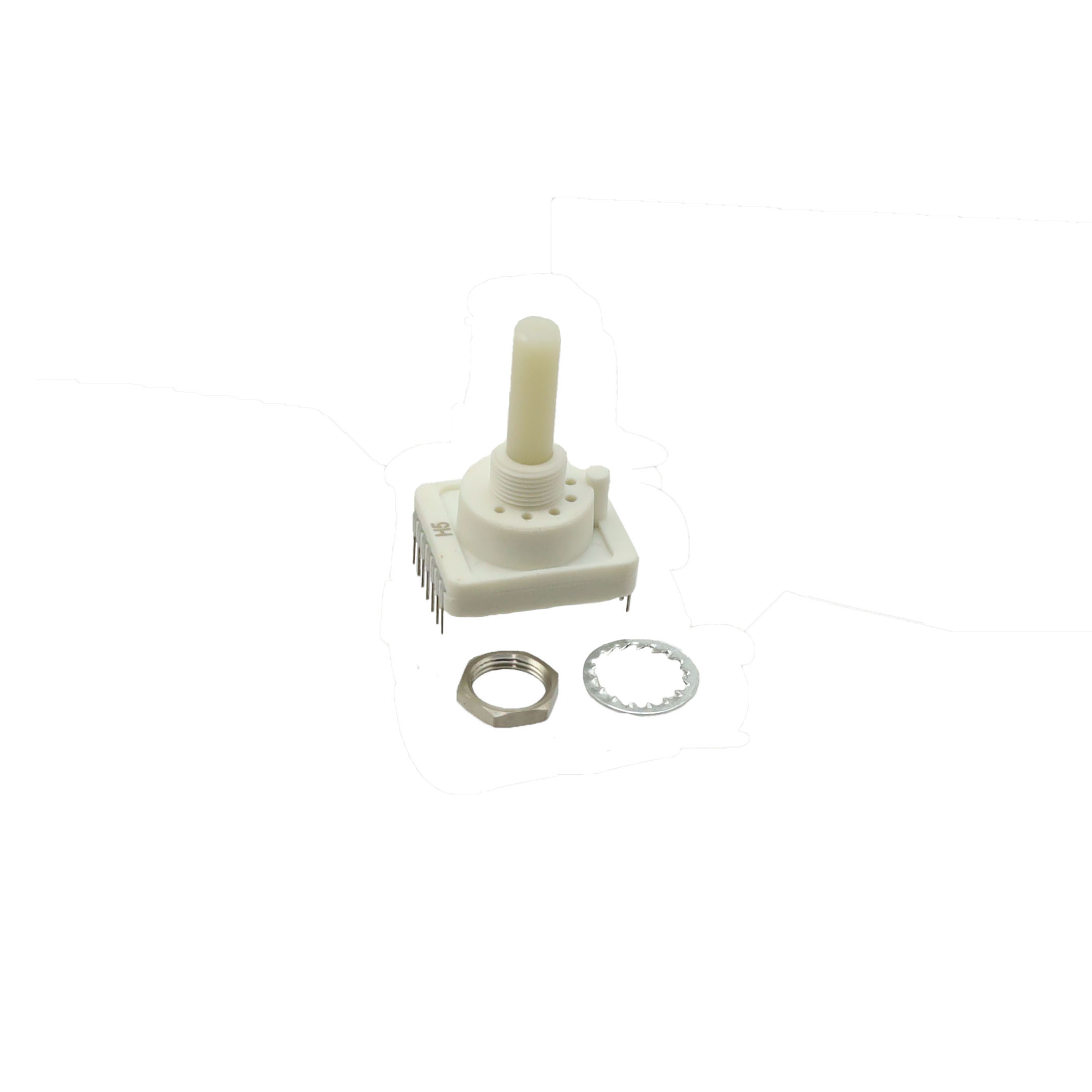

The RTA series from C&K are 1–4 pole coded rotary switches, found most often in appliances, building automation applications and HVAC air conditioning equipment. The RTA series are available in PCB or hand soldering versions, with bushing mounting and multiple poles.
