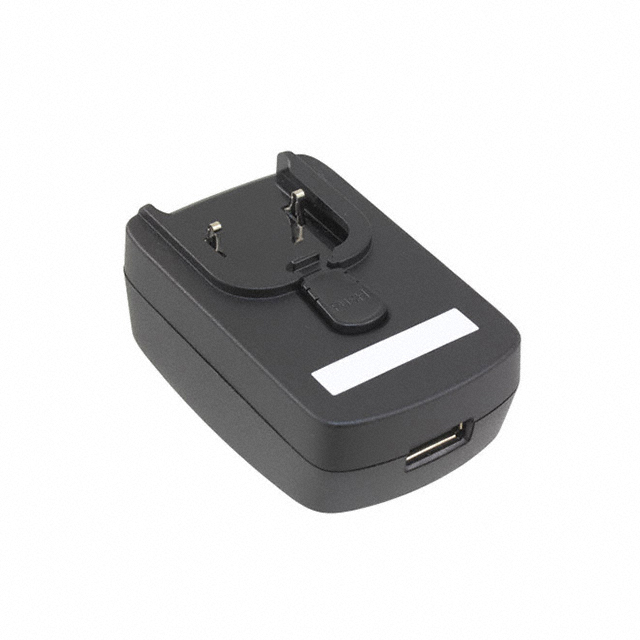

Wall Mount AC Adapters 5W 5V 1A USB A Level VI No Blade
Wall Mount AC Adapters 5W 5V 1A USB A Level VI No Blade
| Part | Weight | Weight | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Form | Standard Number | Applications | Power (Watts) | Input Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Efficiency | Region Utilized | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Output Connector | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | 140 g | 0.308 lb | 75.3 mm | 1.81 in | 46 mm | 2.96 in | 1.25 in | 31.7 mm | Wall Mount | 60950-1 | ITE (Commercial) | 5 W | Multi-Blade (Sold Separately) | 264 VAC | 90 VAC | 5 V | CoC Tier 2 Level VI | International | Multi-Blade | 50 °C | 0 °C | AS/NZS cULus IEC | USB A Receptacle | 1 A |
