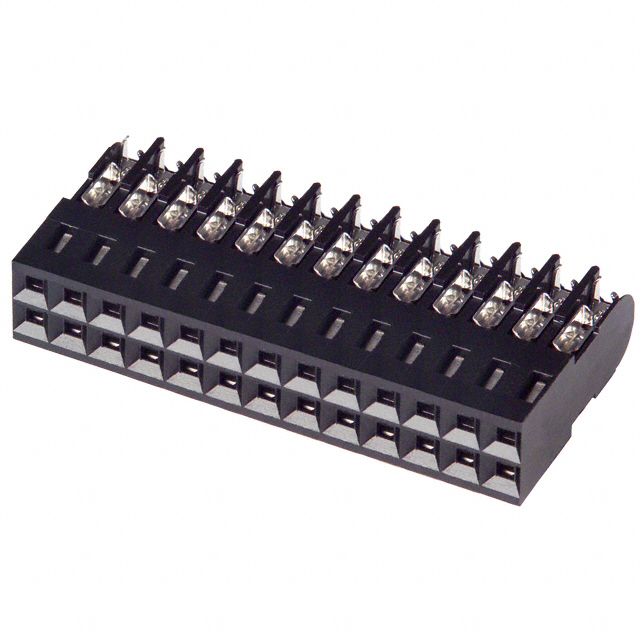

102393 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

18 AMPMODU MT ASSY DR .100CL ROHS COMPLIANT: NO

Part	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Color	Wire Type	Cable Termination	Pitch	Pitch	Wire Gauge [Min]	Wire Gauge [Max]	Row Spacing	Row Spacing	Contact Finish	Contact Type	Connector Type	Features	Number of Positions	Mounting Type
TE Connectivity AMP Connectors 102393-7	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	18	Free Hanging (In-Line)
TE Connectivity AMP Connectors 5-102393-4	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	12	Free Hanging (In-Line)
TE Connectivity AMP Connectors 102393-8	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	20	Free Hanging (In-Line)
TE Connectivity AMP Connectors 5-102393-6	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	16	Free Hanging (In-Line)
TE Connectivity AMP Connectors 5-102393-1	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	6	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-102393-1	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	26	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-102393-0	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	24	Free Hanging (In-Line)
TE Connectivity AMP Connectors 5-102393-2	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	8	Free Hanging (In-Line)
TE Connectivity AMP Connectors 5-102393-3	2	30 Áin	0.76 Ám	Black	Discrete Ribbon Cable	IDC	0.1 "	2.54 mm	26 AWG	30 AWG	2.54 mm	0.1 "	Gold	Female Socket	Receptacle	Closed End	10	Free Hanging (In-Line)
