BD-06BFFA Series
Manufacturer: Amphenol LTW
Catalog

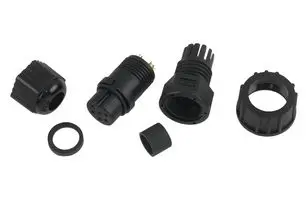

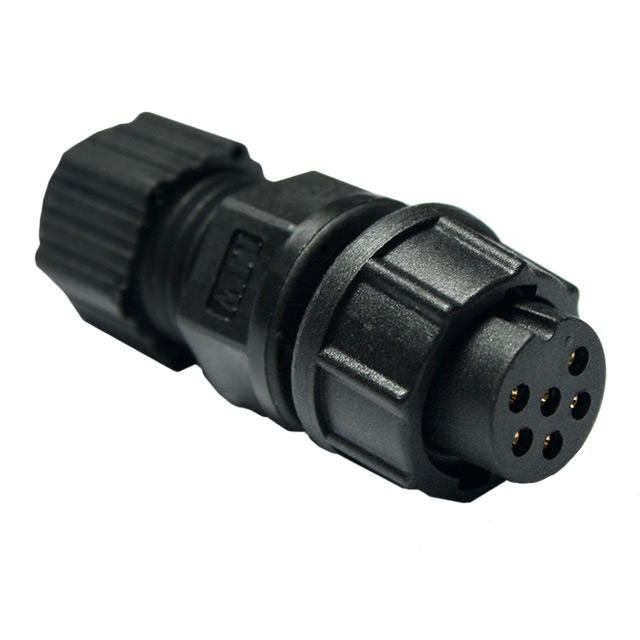

CIRCULAR CONNECTOR, STANDARD (B) SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Cable Opening [diameter] | Cable Opening [diameter] | Primary Material | Current Rating (Amps) | Features | Backshell Material, Plating | Contact Material | Shell Size - Insert | Insert Material | Connector Type | Color | Orientation | Number of Positions | Shell Material | Ingress Protection | Shielding | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol LTW | -40 °C | 105 ░C | Gold | 4.5 mm 6.5 mm | 0.177 in 0.256 in | Plastic | 5 A | Backshell Coupling Nut | Nylon Polyamide (PA) | Copper Alloy | B | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | Black | Keyed | 6 | Glass Filled Nylon Polyamide (PA) | IP67 - Dust Tight Waterproof | Unshielded | Free Hanging (In-Line) | |
 Amphenol LTW | -40 °C | 105 ░C | Gold | Plastic | 5 A | Backshell Coupling Nut | Glass Filled Nylon Polyamide (PA) | Copper Alloy | B | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | Black | Keyed | 6 | Glass Filled Nylon Polyamide (PA) | IP66 | Unshielded | Free Hanging (In-Line) | Bayonet Lock | ||
Amphenol LTW | -40 °C | 105 ░C | Gold | Plastic | 5 A | Backshell Coupling Nut | Glass Filled Nylon Polyamide (PA) | Copper Alloy | B | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | Black | Keyed | 6 | Glass Filled Nylon Polyamide (PA) | IP66 | Unshielded | Free Hanging (In-Line) | |||
 Amphenol LTW | -40 °C | 105 ░C | Gold | Plastic | 5 A | Backshell Coupling Nut | Nylon Polyamide (PA) | Copper Alloy | B | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | Black | Keyed | 6 | Glass Filled Nylon Polyamide (PA) | IP67 - Dust Tight Waterproof | Unshielded | Free Hanging (In-Line) | Bayonet Lock |
