HTN1.00 Series
Manufacturer: Techflex
Beta
⌘K

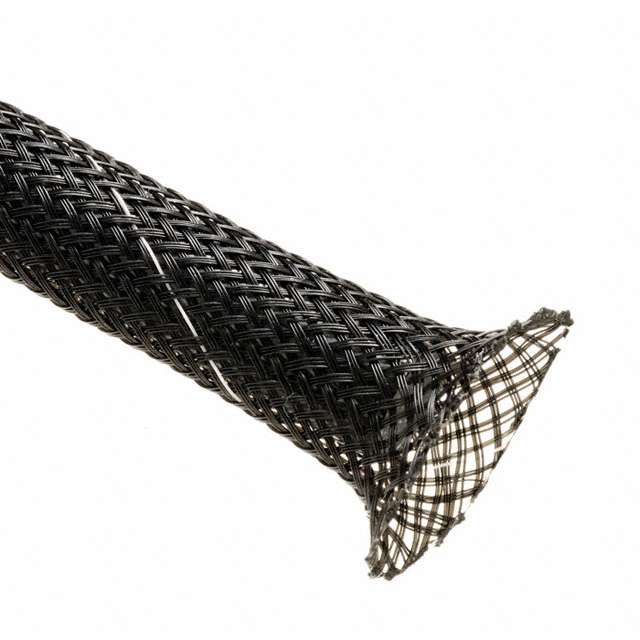

EXPAND SLEEVE 1" X 65' BLK/WHT
| Part | Wall Thickness | Wall Thickness | Diameter - Inside, Expanded [diameter] | Diameter - Inside, Expanded [diameter] | Length | Length | Abrasion Protection | Material Flammability Rating | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Features | Liquid Protection | Material | Type | Heat Protection | Operating Temperature [Min] | Operating Temperature [Max] | Type Attributes | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Techflex | 0.028 in | 0.71 mm | 1.625 in | 41.28 mm | 19.81 m | 65 ft | Abrasion and Cut Resistant | UL VW-1 | 25.4 mm | 1 " | Acid Resistant Chemical Resistant Clean Cut Self Extinguishing Solvent Resistant | Gasoline Resistant | Ethylene Chlorotrifluoroethylene (ECTFE) Halogen Free Plenum Rated | Sleeve | Flame Resistant Heat Resistant | -75 °C | 150 °C | Expandable | Black White |
