737-048 Series

Manufacturer: EDAC Inc.

Catalog

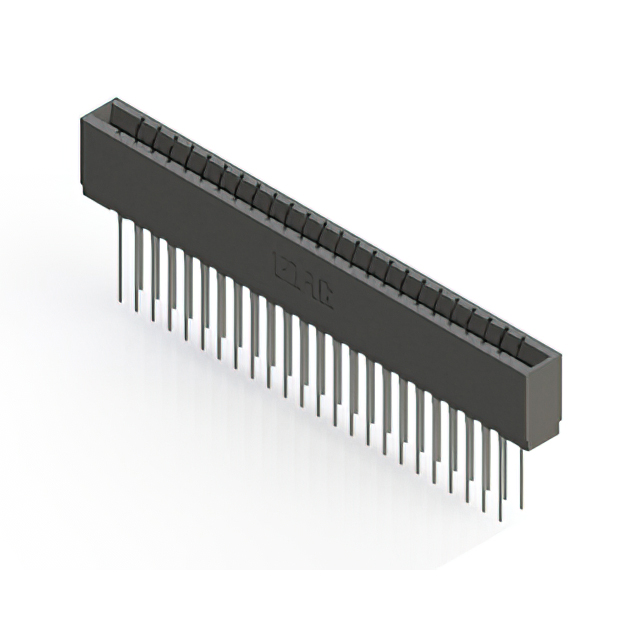

CONN EDGE DUAL FMALE 48POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Gender	Number of Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch	Pitch	Read Out	Card Type	Contact Material
EDAC Inc. 737-048-525-206	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-545-206	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-540-206	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-545-201	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-520-206	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-560-201	Polyester Thermoplastic	2	Cantilever Make Before Break	Black	Through Hole	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-522-206	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-525-201	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-560-206	Polyester Thermoplastic	2	Cantilever Make Before Break	Black	Through Hole	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
EDAC Inc. 737-048-541-201	Polyester Thermoplastic	2	Cantilever	Black	Through Hole	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	24	Female	2	48	30 Áin	0.76 Ám	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	Copper Alloy
