3097 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

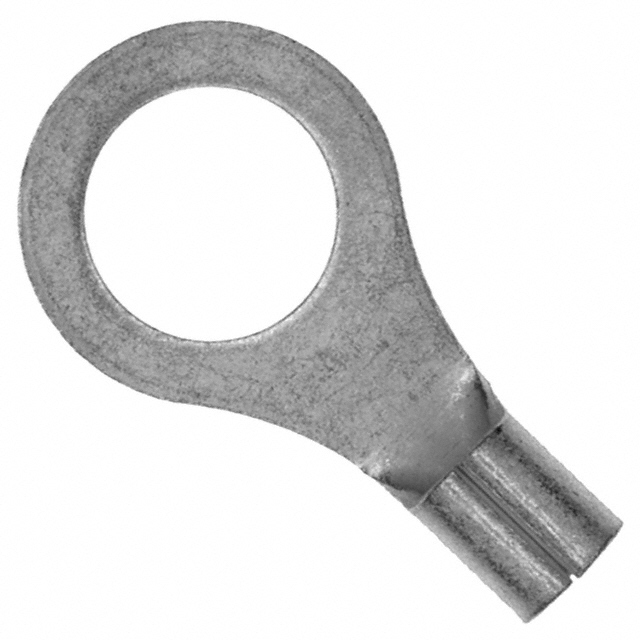

CONN RING CIRC 10-12AWG #3/8
| Part | Length - Overall [x] | Length - Overall | Thickness | Thickness | Mounting Type | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Features | Stud/Tab Size | Insulation | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1.098 " | 27.89 mm | 0.99 mm | 0.039 in | Free Hanging (In-Line) | Crimp | 12 AWG | 10 AWG | Circular | Serrated Termination | 3/8 Stud | Non-Insulated | Tin | 0.593 in | 15.06 mm | Copper |
