1083A Series
Manufacturer: Belden Inc.
Beta
⌘K

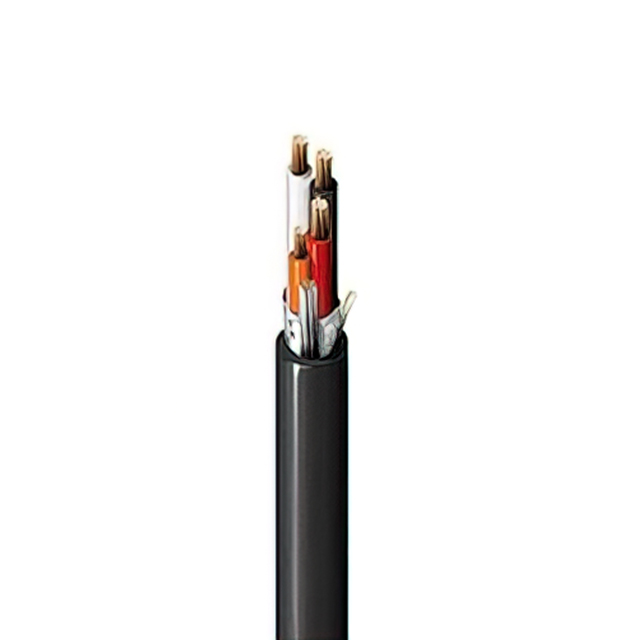

CABLE 13COND 20AWG/22AWG
| Part | Shield Material | Shield Coverage | Length | Length | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket Color | Wire Gauge | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [x] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Shield Type | Jacket (Insulation) Material | Conductor Insulation | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 3048 m | 10000 ft | Drain Wire Rip Cord | 12.24 mm | 0.482 in | UL Style 2464 | Black | 20 22 | 13 | 0.053 " | 1.346 mm | 28 30 | 7 | Copper Bare | -30 ░C | 105 ░C | Multi-Triad | Foil | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 300 VDC |
