505006 Series
Manufacturer: Molex
Beta
⌘K

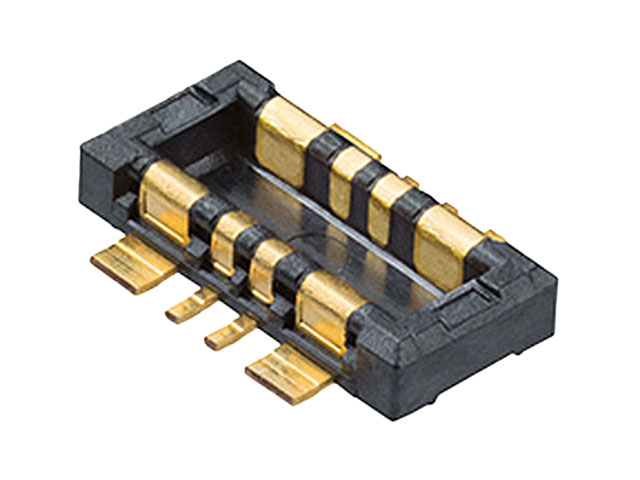

SLIMSTACK BOARD-TO-BOARD PLUG, 0.40MM PITCH, BATTERY SERIES, 0.75MM MATED HEIGHT, 2.50MM MATED WIDTH, 8 CIRCUITS, 6.0A
| Part | Mounting Type | Number of Rows [custom] | Features | Height Above Board [z] | Height Above Board [z] | Connector Type | Mated Stacking Heights | Contact Finish | Number of Positions | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Surface Mount | 2 | Pick and Place Solder Retention | 0.63 mm | 0.025 in | Plug Outer Shroud Contacts | 0.8 mm | Gold | 8 | 0.4 mm | 0.016 in |
