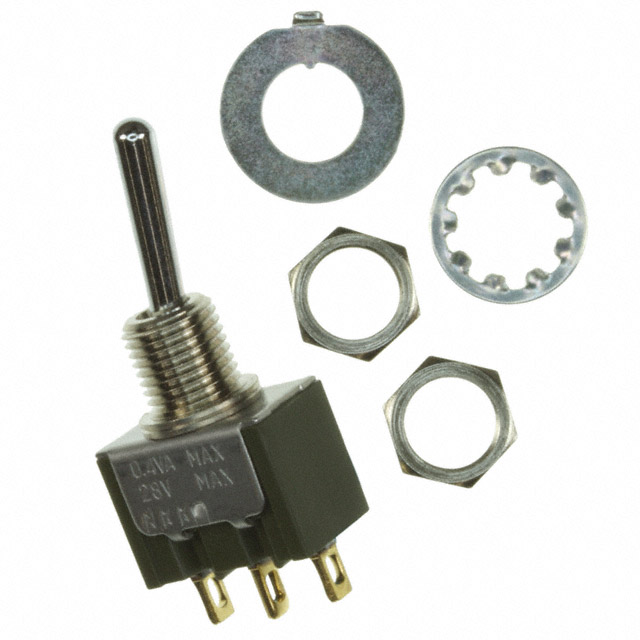

M2015SA Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Bushing Thread | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Features | Termination Style | Mounting Type | Current Rating (Amps) | Illumination | Actuator Length [x] | Circuit | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 50000 Cycles | 1/4-40 | Standard Round | 85 °C | -30 ░C | 28 V | Epoxy Sealed Terminals | Solder Lug | Panel Mount | 0.4 VA | Non-Illuminated | 12.28 mm | SPDT | 6.5 mm | 28 V | On-Mom |
