NRPN072 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 14POS 2MM

Part	Contact Finish Thickness - Post	Insulation Color	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Style	Pitch - Mating	Pitch - Mating	Number of Positions	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Termination	Mounting Type	Contact Finish - Post	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Type	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post	Overall Contact Length	Overall Contact Length	Features
Sullins Connector Solutions NRPN072MAMS-RC	Flash	Black	150 VDC	2 mm	0.079 in	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	2	Flash	Brass	Push-Pull	Board to Board Cable	0.079 "	2 mm	14	UL94 V-0	Square	All	2 A	Solder	Surface Mount	Gold	Header	0.059 in	1.5 mm	-40 C	105 ░C	Gold	Male Pin	Unshrouded

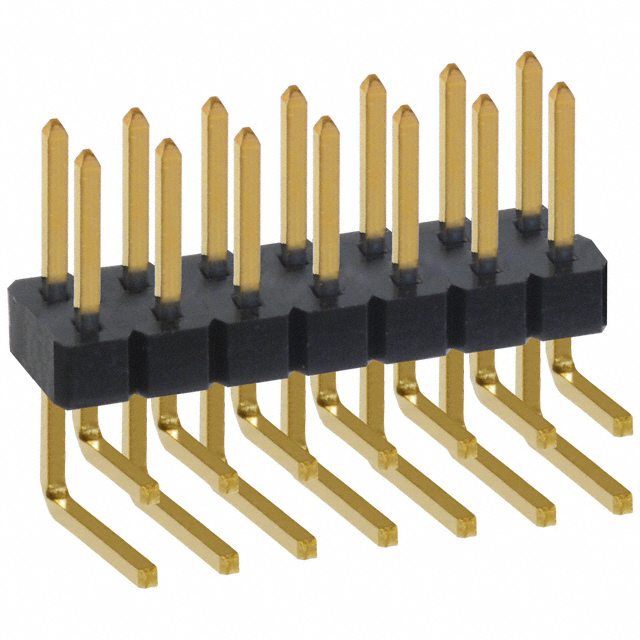

Sullins Connector Solutions NRPN072PARN-RC	Flash	Black	150 VDC	2 mm	0.079 in	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	2	Flash	Brass	Push-Pull	Board to Board Cable	0.079 "	2 mm	14	UL94 V-0	Square	All	2 A	Solder	Right Angle Through Hole	Gold	Header			-40 C	105 ░C	Gold	Male Pin	Unshrouded	4 mm	0.157 in	0.11 in	2.79 mm
Sullins Connector Solutions NRPN072PAEN-RC	Flash	Black	150 VDC	2 mm	0.079 in	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	2	Flash	Brass	Push-Pull	Board to Board Cable	0.079 "	2 mm	14	UL94 V-0	Square	All	2 A	Solder	Through Hole	Gold	Header			-40 C	105 ░C	Gold	Male Pin	Unshrouded	2 mm	0.079 in	0.11 in	2.79 mm	0.33 in	8.38 mm
Sullins Connector Solutions NRPN072MAMP-RC	Flash		150 VDC	2 mm	0.079 in	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	2	Flash	Brass	Push-Pull	Board to Board Cable	0.079 "	2 mm	14	UL94 V-0	Square	All	2 A	Solder	Surface Mount	Gold	Header	0.059 in	1.5 mm	-40 C	105 ░C	Gold	Male Pin	Unshrouded							Board Guide
