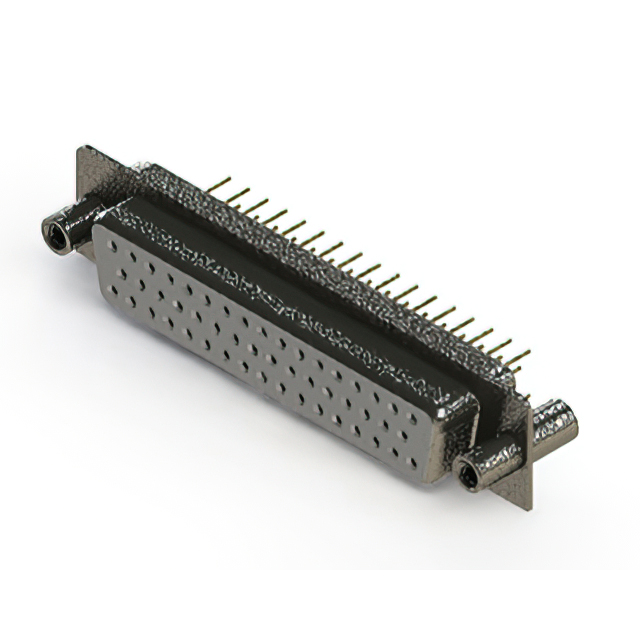

628-M50 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB RCPT 50POS VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Flange Feature | Mounting Type | Number of Rows [custom] | Number of Positions | Contact Finish | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Connector Type | Shell Material, Finish | Contact Type | Material Flammability Rating | Termination | Connector Style | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Copper Alloy | 4-40 | Through Hole | 3 | 50 | Gold | 5 A | 0.38 µm | 15 µin | 5 | D DD | Board Lock Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | Solder | D-Sub | ||
 EDAC Inc. | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Copper Alloy | Housing/Shell (Unthreaded) | Through Hole | 3 | 50 | Gold | 5 A | 5 | D DD | Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | Solder | D-Sub | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Copper Alloy | Housing/Shell | Free Hanging (In-Line) | 3 | 50 | Gold | 5 A | 5 | D DD | Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | D-Sub | Flash | 4-40 | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Copper Alloy | Board Side (4-40) | Through Hole | 3 | 50 | Gold | 5 A | 0.38 µm | 15 µin | 5 | D DD | Shielded | Receptacle Female Sockets | Signal and Power | UL94 V-0 | Solder | D-Sub | |||
 EDAC Inc. | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Copper Alloy | 4-40 | Through Hole | 3 | 50 | Gold | 5 A | 0.76 Ám | 30 Áin | 5 | D DD | Board Lock Shielded | Receptacle Female Sockets | Signal and Power | UL94 V-0 | Solder | D-Sub | |||
 EDAC Inc. | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Copper Alloy | 4-40 | Through Hole | 3 | 50 | Gold | 5 A | 5 | D DD | Board Lock Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | Solder | D-Sub | Flash | |||
 EDAC Inc. | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Copper Alloy | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 3 | 50 | Gold | 5 A | 0.76 Ám | 30 Áin | 5 | D DD | Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | D-Sub | |||
 EDAC Inc. | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Copper Alloy | Housing/Shell | Through Hole | 3 | 50 | Gold | 5 A | 0.76 Ám | 30 Áin | 5 | D DD | Shielded | Receptacle Female Sockets | Signal and Power | UL94 V-0 | Solder | D-Sub | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Copper Alloy | Housing/Shell | Through Hole | 3 | 50 | Gold | 5 A | 5 | D DD | Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | Solder | D-Sub | Flash | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Copper Alloy | 4-40 | Through Hole | 3 | 50 | Gold | 5 A | 0.38 µm | 15 µin | 5 | D DD | Board Lock Shielded | Receptacle Female Sockets | Nickel Plated Steel | Signal and Power | UL94 V-0 | Solder | D-Sub |
