CMCP787 Series

Catalog

PREMIUM ACCEL, 100 MV/G SIDE M8

Part	Package / Case	Bandwidth [Min]	Bandwidth [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Acceleration Range	Sensitivity (mV/g)	Voltage - Supply [Min]	Voltage - Supply [Max]	Axis
STI Vibration Monitoring CMCP787A-M8	Module	0.8 Hz	15 kHz	-55 C	150 °C	Chassis Mount	Analog	80 g	100 mV/g	10 VDC	12 V	X

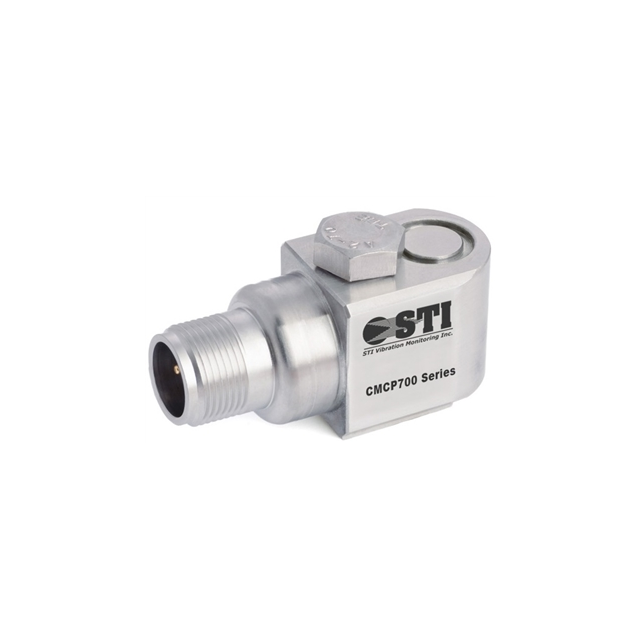

STI Vibration Monitoring CMCP787T	Module	0.8 Hz	15 kHz	-55 C	150 °C	Chassis Mount	Analog	80 g	100 mV/g	10 VDC	12 V	X
STI Vibration Monitoring CMCP787T-M8	Module	0.8 Hz	15 kHz	-55 C	150 °C	Chassis Mount	Analog	80 g	100 mV/g	10 VDC	12 V	X
STI Vibration Monitoring CMCP787A	Module	0.8 Hz	15 kHz	-55 C	150 °C	Chassis Mount	Analog	80 g	100 mV/g	10 VDC	12 V	X
