LMZ22003 Series

3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Catalog

3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Part	Supplied Contents	Board Type	Main Purpose	Current - Output	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Output	Regulator Topology	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Voltage - Input (Max) [Max]	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]

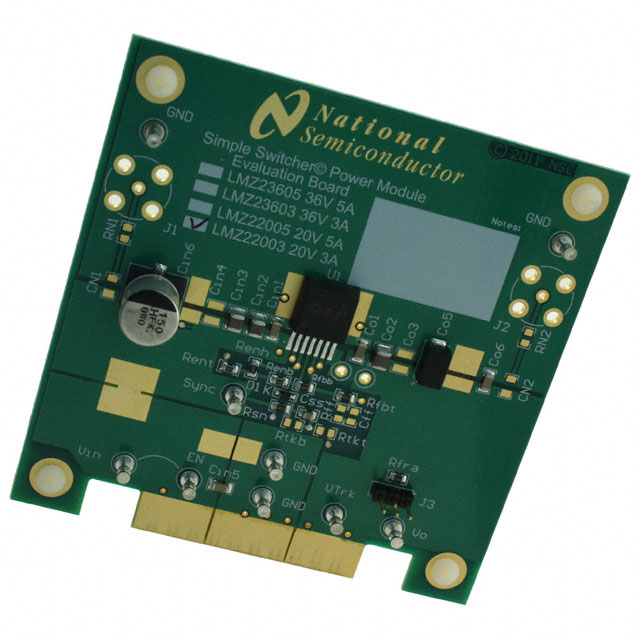

Texas Instruments LMZ22003EVAL/NOPB	Board(s)	Fully Populated	DC/DC Step Down	3 A	LMZ22003	20 V	6 V	812 kHz	Non-Isolated	1	3.3 V	Buck
Texas Instruments LMZ22003TZE/NOPB													TO-PMOD-7	3 A	6 V	Surface Mount	1	Non-Isolated PoL Module	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	ITE (Commercial)	20 V	92 %	UVLO	125 °C	-40 °C
Texas Instruments LMZ22003TZX/NOPB													TO-PMOD-7	3 A	6 V	Surface Mount	1	Non-Isolated PoL Module	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	ITE (Commercial)	20 V	92 %	UVLO	125 °C	-40 °C
Texas Instruments LMZ22003TZ/NOPB													TO-PMOD-7	3 A	6 V	Surface Mount	1	Non-Isolated PoL Module	TO-PMOD-7 Power Module	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	0.8 V	6 V	ITE (Commercial)	20 V	92 %	UVLO	125 °C	-40 °C

Catalog

3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Key Features

• Integrated Shielded InductorSimple PCB LayoutFrequency Synchronization Input (650 kHz to 950kHz)Flexible Start-up Sequencing Using External Soft-Start, Tracking and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitJunction Temperature Range –40°C to 125°CSingle Exposed Pad and Standard Pinout forEasy Mounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsFully Enabled for WEBENCH®Power DesignerPin Compatible WithLMZ23605/LMZ23603/LMZ22005Electrical Specifications18-W Maximum Total Output PowerUp to 3-A Output CurrentInput Voltage Range 6 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%Performance BenefitsHigh Efficiency Reduces System HeatGenerationTested To EN55022 Class B(1)Low Component Count, Only 5 ExternalComponentsLow Output Voltage RippleUses PCB as Heat Sink, No Airflow RequiredIntegrated Shielded InductorSimple PCB LayoutFrequency Synchronization Input (650 kHz to 950kHz)Flexible Start-up Sequencing Using External Soft-Start, Tracking and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitJunction Temperature Range –40°C to 125°CSingle Exposed Pad and Standard Pinout forEasy Mounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsFully Enabled for WEBENCH®Power DesignerPin Compatible WithLMZ23605/LMZ23603/LMZ22005Electrical Specifications18-W Maximum Total Output PowerUp to 3-A Output CurrentInput Voltage Range 6 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%Performance BenefitsHigh Efficiency Reduces System HeatGenerationTested To EN55022 Class B(1)Low Component Count, Only 5 ExternalComponentsLow Output Voltage RippleUses PCB as Heat Sink, No Airflow Required

Description

The LMZ22003 SIMPLE SWITCHER power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load. The LMZ22003 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ22003 can accept an input voltage rail between 6 V and 20 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ22003 only requires two external resistors and three external capacitors to complete the power solution. The LMZ22003 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and this device allows start-up into a prebiased output. The sync input allows synchronization over the 650- to 950-kHz switching frequency range. The LMZ22003 SIMPLE SWITCHER power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load. The LMZ22003 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ22003 can accept an input voltage rail between 6 V and 20 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ22003 only requires two external resistors and three external capacitors to complete the power solution. The LMZ22003 is a reliable and robust design with the following protection features: thermal shutdown, programmable input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and this device allows start-up into a prebiased output. The sync input allows synchronization over the 650- to 950-kHz switching frequency range.
