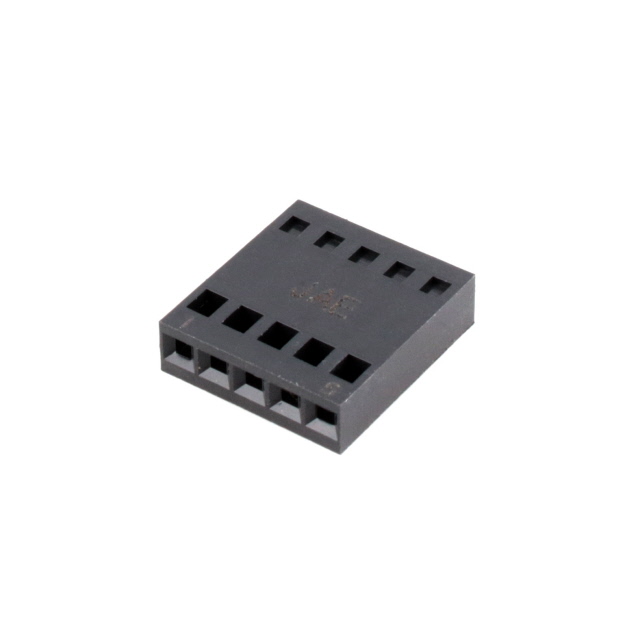

PS-5SD-S Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT 5POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Insulation Material | Contact Shape | Contact Material | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Type | Insulation Color | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Fastening Type | Contact Finish - Post | Number of Positions | Contact Type | Mounting Type | Note | Contact Termination | Color | Pitch | Pitch | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Flash | Polybutylene Terephthalate (PBT) | Square | Copper Alloy | All | 3.9 µin | 0.099 µm | Gold | 9.5 mm | 0.374 in | -55 C | 85 °C | 1 | Receptacle | Black | Solder | 0.1 " | 2.54 mm | UL94 V-0 | 3 A | 0.115 in | 2.92 mm | Push-Pull | Gold | 5 | Female Socket | Through Hole | |||||||
 JAE Electronics | Polybutylene Terephthalate (PBT) | 1 | Receptacle | 5 | Female Socket | Free Hanging (In-Line) | Contacts Not Included | Crimp | Black | 0.1 " | 2.54 mm | |||||||||||||||||||||||
 JAE Electronics | Flash | Polybutylene Terephthalate (PBT) | Square | Copper Alloy | All | 3.9 µin | 0.099 µm | Gold | -55 C | 85 °C | 1 | Receptacle | Black | Solder | 0.1 " | 2.54 mm | UL94 V-0 | 3 A | 0.115 in | 2.92 mm | Push-Pull | Gold | 5 | Female Socket | Right Angle Through Hole | 3.75 mm | 0.148 in |
