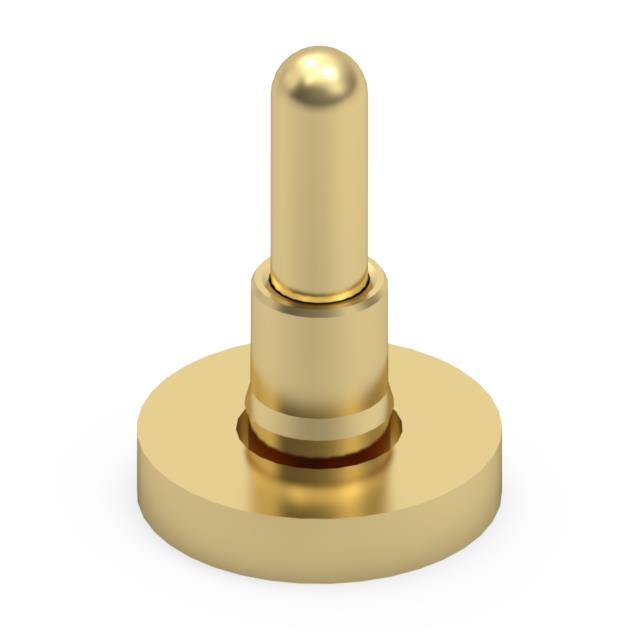

0990-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Recommended Working Height | Recommended Working Height | Contact Type | Minimum Working Height | Minimum Working Height | Mating Cycles | Contact Finish | Current Rating (Amps) | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 4.81 mm | 0.189 in | Sleeve & Plunger (Pogo Pins) | 4.1 mm | 0.161 in | 1000000 | Gold | 5.2 A | 10 gf | 0.217 in | 5.51 mm | 60 gf | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | Surface Mount | Brass Alloy | 0.159 in | 4.04 mm |
