RP420 Series

Catalog

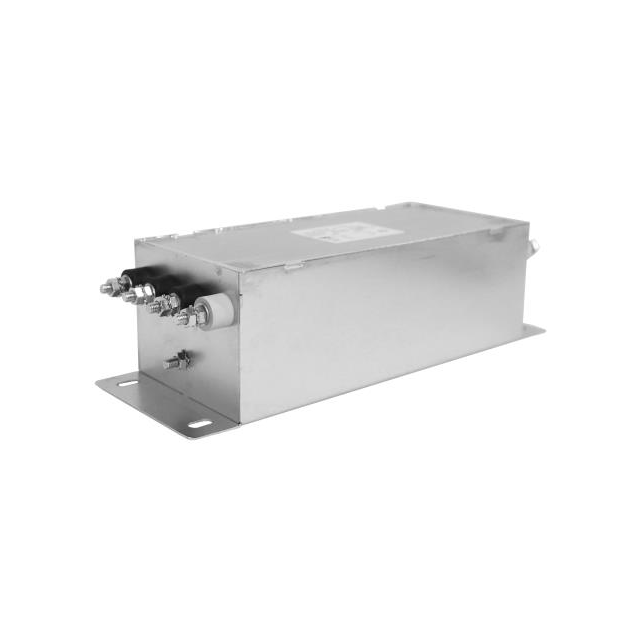

LINE FILTER 480VAC 150A CHASSIS

...

Part	Configuration	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Rated AC	Mounting Type	Current	Termination Style	Approval Agency	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]
Astrodyne TDI RP420-150-1000-W	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	150 A	Wire Leads	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-50-2000-S	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	50 A	Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-50-1000-C	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	50 A	Terminal Block	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-50-100-S	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	50 A	Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-30-0-S	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	30 A	Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-15-0-W	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	15 A	Wire Leads	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-80-100-C	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	80 A	Terminal Block	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-150-2000-S	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	150 A	Threaded Post	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-100-10-W	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	100 A	Wire Leads	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
Astrodyne TDI RP420-150-100-S	Two Stage	3.8 kV	100 °C	-25 °C	General Purpose	480 V	Chassis Mount	150 A	Threaded Post	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	60 Hz	50 Hz
