NHD-C0216 Series

Catalog

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Part	Backlight	Character Format [x]	Character Format [y]	Interface	Display Mode	Dot Size [custom]	Dot Size [custom]	Viewing Area [x]	Viewing Area [y]	Controller Type	Text Color	Voltage - Supply [Max]	Voltage - Supply [Min]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Background Color	Operating Temperature [Min]	Operating Temperature [Max]	Display Format [x]	Display Format [y]	Character Size [y]	Character Size [z]	Display Type	Number of Characters	Dot Size [y]	Dot Size [x]

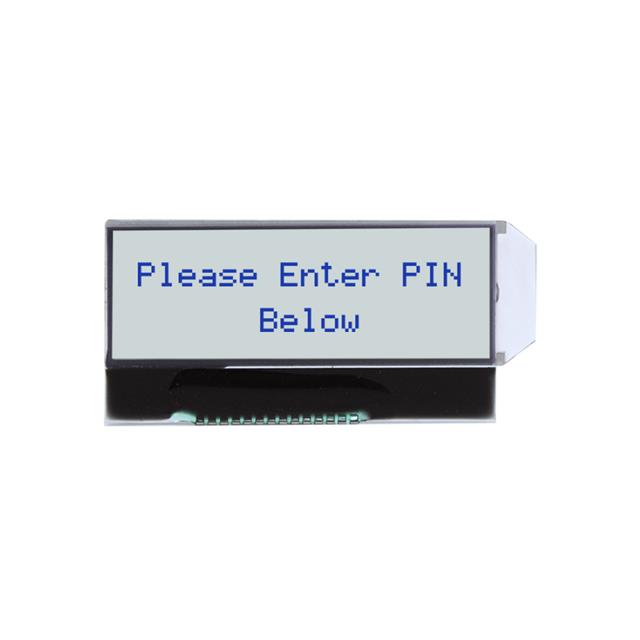

Newhaven Display Intl NHD-C0216AZ-FSW-GBW	LED - White	5 Dots	8 Dots	Parallel	Transflective	0.41 mm	0.55 mm	45.7 mm	14.3 mm	NT-7605	Blue	5.5 V	4.7 V	25.3 mm	54.7 mm	2 mm	Gray	-20 ░C	70 °C	16	2	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	32

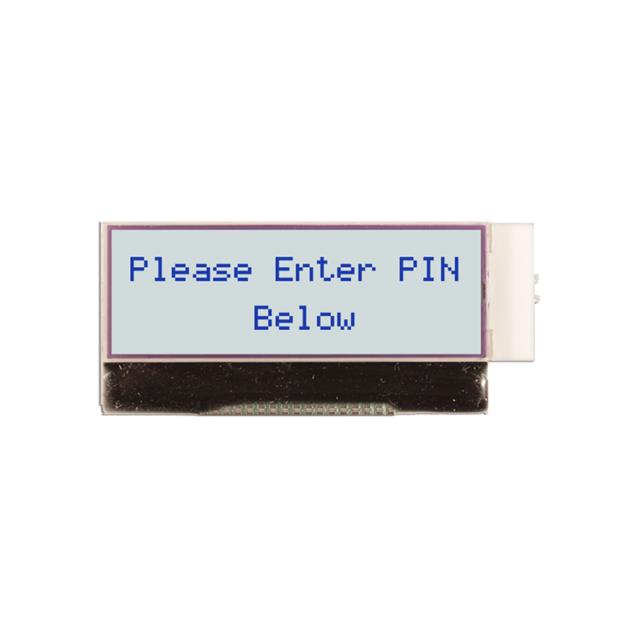

Newhaven Display Intl NHD-C0216CU-FSW-GBW-3V3	LED - White	5 Dots	8 Dots	Parallel	Transflective	0.41 mm	0.55 mm	45.7 mm	14.3 mm	ST-7032	Blue	5.5 V	2.7 V	25.3 mm	56 mm	5.5 mm	White	-20 ░C	70 °C	16	2	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	32

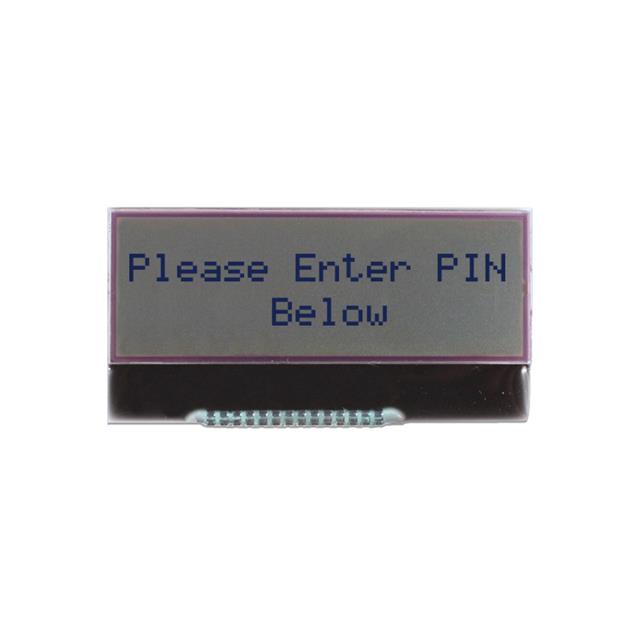

Newhaven Display Intl NHD-C0216AZ-FN-GBW		5 Dots	8 Dots	Parallel	Transflective	0.41 mm	0.55 mm	45.7 mm	14.3 mm	NT-7605	Blue	5.5 V	4.7 V	25.3 mm	49.7 mm	2.1 mm	Gray	-20 ░C	70 °C	16	2	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	32

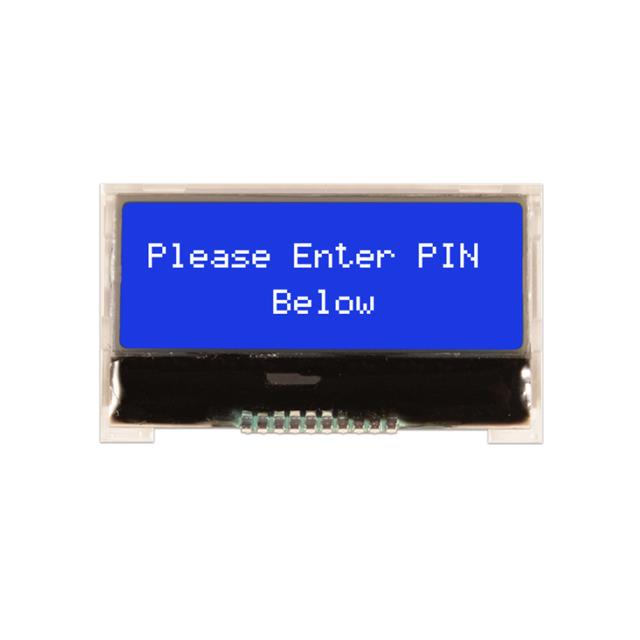

Newhaven Display Intl NHD-C0216CZ-NSW-BBW-3V3	LED - White	5 Dots	8 Dots	Serial	Transmissive			37.6 mm	12.8 mm	ST-7032	White	4.5 V	2.7 V	24.3 mm	41.4 mm	4 mm	Blue	-20 ░C	70 °C	16	2	1.82 mm	4.13 mm	STN - Super-Twisted Nematic	32	0.49 mm	0.34 mm

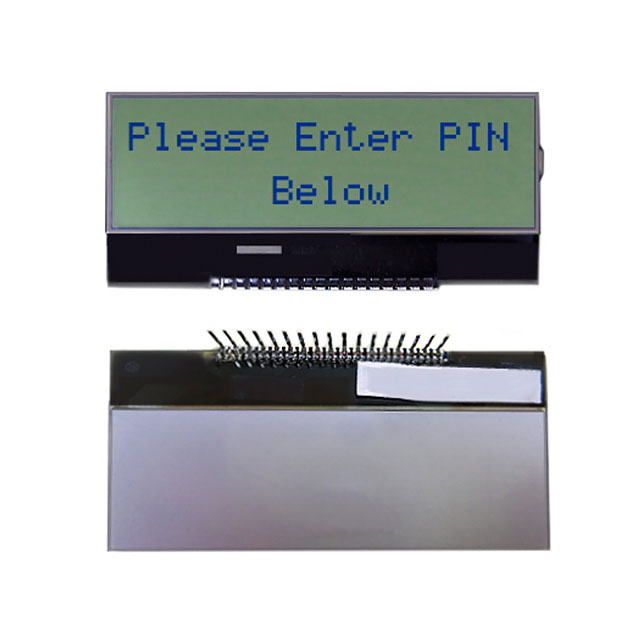

Newhaven Display Intl NHD-C0216CU-FN-GBW-3V		5 Dots	8 Dots	Parallel	Transflective	0.41 mm	0.55 mm	45.7 mm	14.3 mm	ST-7032	Blue	5.5 V	2.7 V	25.3 mm	49.7 mm	2 mm	Gray	-20 ░C	70 °C	16	2	2.21 mm	4.68 mm	STN - Super-Twisted Nematic	32

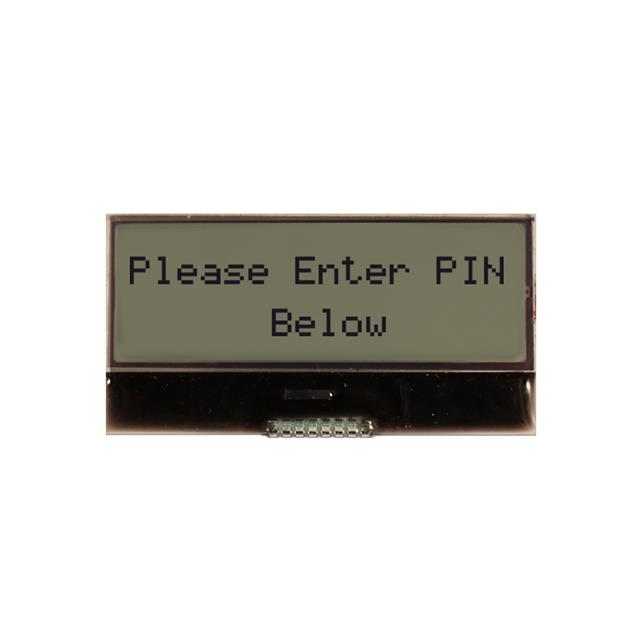

Newhaven Display Intl NHD-C0216CIZ-FN-FBW-3V		5 Dots	8 Dots	I2C	Transflective	0.41 mm	0.55 mm	45.7 mm	14.3 mm	AiP31032	Black	3.3 V	2.7 V	25.3 mm	49.7 mm	2.1 mm	Gray	-20 ░C	70 °C	16	2	2.21 mm	4.68 mm	FSTN - Film Super-Twisted Nematic	32

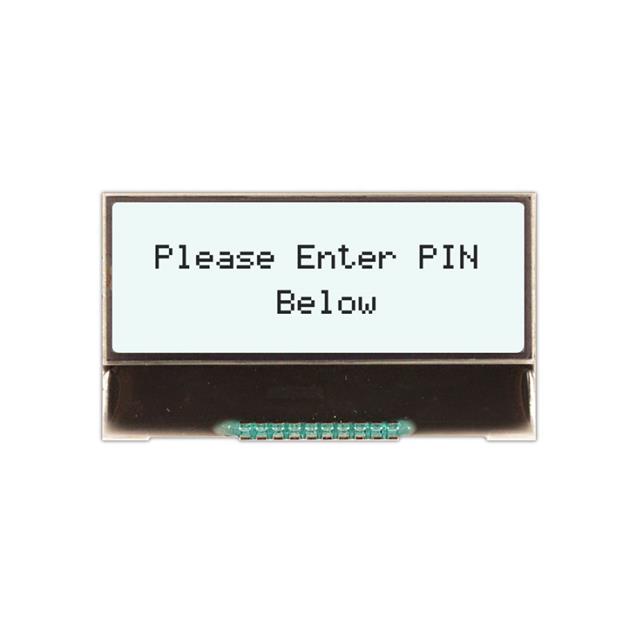

Newhaven Display Intl NHD-C0216CZ-FSW-FBW-3V3	LED - White	5 Dots	8 Dots	Serial	Transflective			37.6 mm	12.8 mm	ST-7032	Black	4.5 V	2.7 V	24.3 mm	41.4 mm	4 mm	White	-20 ░C	70 °C	16	2	1.82 mm	4.13 mm	FSTN - Film Super-Twisted Nematic	32	0.49 mm	0.34 mm

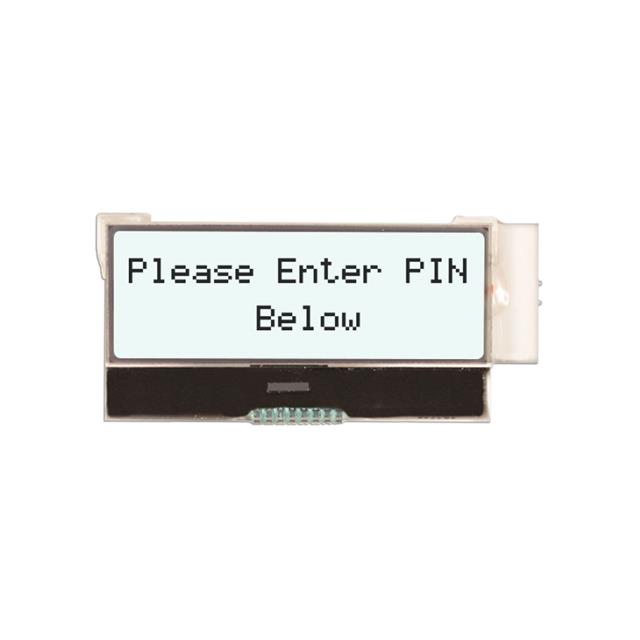

Newhaven Display Intl NHD-C0216CIZ-FSW-FBW-3V3	LED - White	5 Dots	8 Dots	I2C	Transflective	0.41 mm	0.55 mm	45.7 mm	14.3 mm	AiP31032	Black	3.3 V	2.7 V	25.3 mm	56 mm	5.5 mm	White	-20 ░C	70 °C	16	2	2.21 mm	4.68 mm	FSTN - Film Super-Twisted Nematic	32
