TPS61183 Series
Manufacturer: Texas Instruments
Beta
⌘K
WLED DRIVER FOR NOTEBOOKS WITH PWM INTERFACE AND PROGRAMMABLE PWM DIMMING
| Part | Topology | Mounting Type | Supplier Device Package | Number of Outputs | Package / Case | Current - Output / Channel | Type | Internal Switch(s) | Voltage - Supply (Min) [Min] | Frequency [Max] | Frequency [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output | Voltage - Supply (Max) [Max] | Applications | Dimming | Supplied Contents | Outputs and Type | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Up (Boost) | Surface Mount | 20-QFN (4x4) | 6 | 20-WFQFN Exposed Pad | 30 mA | DC DC Regulator | 4.5 V | 1 MHz | 300 kHz | 85 C | -40 ¯C | 38 V | 24 V | Backlight | PWM | ||||||||

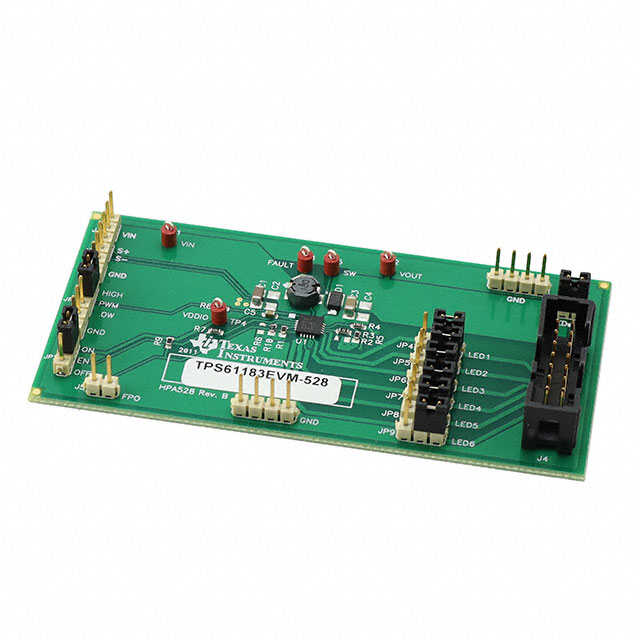

 Texas Instruments | 120 mA | 38 V | Board(s) | 6 | 6 Non-Isolated Outputs Non-Isolated | 24 V | 4.5 V | Board(s) | TPS61183 | |||||||||||||||
Texas Instruments | Step-Up (Boost) | Surface Mount | 20-QFN (4x4) | 6 | 20-WFQFN Exposed Pad | 30 mA | DC DC Regulator | 4.5 V | 1 MHz | 300 kHz | 85 C | -40 ¯C | 38 V | 24 V | Backlight | PWM |
