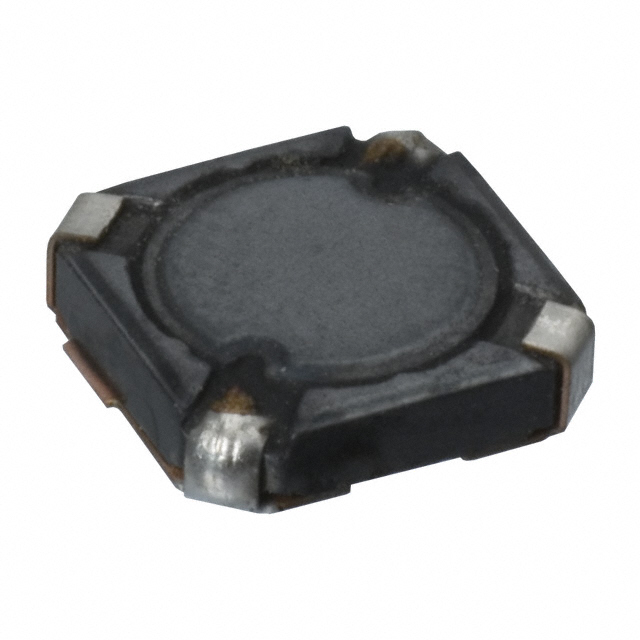

ELL-5GM Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 4.7UH 1.1A 92 MOHM SMD
| Part | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Inductance | Shielding | Inductance Frequency - Test | Tolerance | Current Rating (Amps) | Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Nonstandard | 0.205 " | 5.2 mm | 0.205 in | 5.2 mm | Surface Mount | 1.5 mm | 0.059 " | 4.7 ÁH | Shielded | 100 kHz | 30 % | 1.1 A | Wirewound | 92 mOhm |
