794066 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

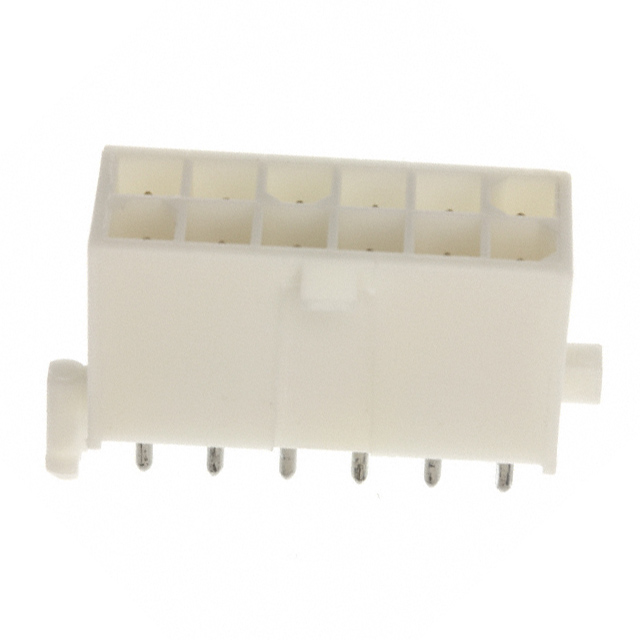

CONN HEADER VERT 12POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Connector Type | Style | Insulation Height | Insulation Height | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Contact Finish - Mating | Material Flammability Rating | Termination | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Shrouding | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Number of Positions | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Type | Contact Length - Post | Contact Length - Post | Contact Shape | Contact Material | Current Rating (Amps) | Contact Finish - Post | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Header | Board to Cable/Wire | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | 0.76 Ám | 30 Áin | White | Gold | UL94 V-0 | Solder | 600 VAC | -20 ░C | 105 ░C | All | Shrouded - 4 Wall | Board Lock | 4.14 mm | 0.163 in | Locking Ramp | 12 | 0.163 in | 4.14 mm | Through Hole | Male Pin | 4.45 mm | 0.175 in | Circular | Brass | Varies by Wire Gauge | Tin-Lead | 2 |
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Header | Board to Cable/Wire | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | 3.81 Ám | 150 Áin | White | Tin-Lead | UL94 V-0 | Solder | 600 VAC | -20 ░C | 85 °C | All | Shrouded - 4 Wall | Board Lock | 4.14 mm | 0.163 in | Locking Ramp | 12 | 0.163 in | 4.14 mm | Through Hole | Male Pin | 4.45 mm | 0.175 in | Circular | Brass | Varies by Wire Gauge | Tin-Lead | 2 |
