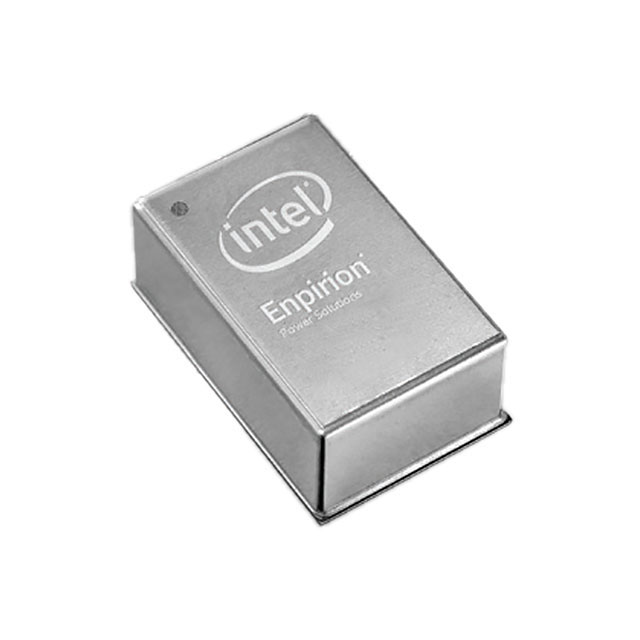

EM2130 Series

Manufacturer: Altera

Catalog

DC DC CONVERTER 0.7-1.325V

Part	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency
Altera EM2130L01QI	ITE (Commercial)	0.27 "	6.8 mm	17 mm	0.43 in	11 mm	0.67 "	Surface Mount	1	30 A	100-PowerBQFN Module	Non-Isolated PoL Module Digital	16 V	4.5 V	85 °C	-40 C	1.325 V	0.7 V	90 %
Altera EM2130L02QI	ITE (Commercial)	0.27 "	6.8 mm	17 mm	0.43 in	11 mm	0.67 "	Surface Mount	1	30 A	104-PowerBQFN Module	Non-Isolated PoL Module Digital	16 V	4.5 V	85 °C	-40 °C	1.325 V	0.7 V	90 %
Altera EM2130L01QI	ITE (Commercial)	0.27 "	6.8 mm	17 mm	0.43 in	11 mm	0.67 "	Surface Mount	1	30 A	100-PowerBQFN Module	Non-Isolated PoL Module Digital	16 V	4.5 V	85 °C	-40 C	1.325 V	0.7 V	90 %
