SMDTD0 Series
Manufacturer: WIMA
Beta
⌘K

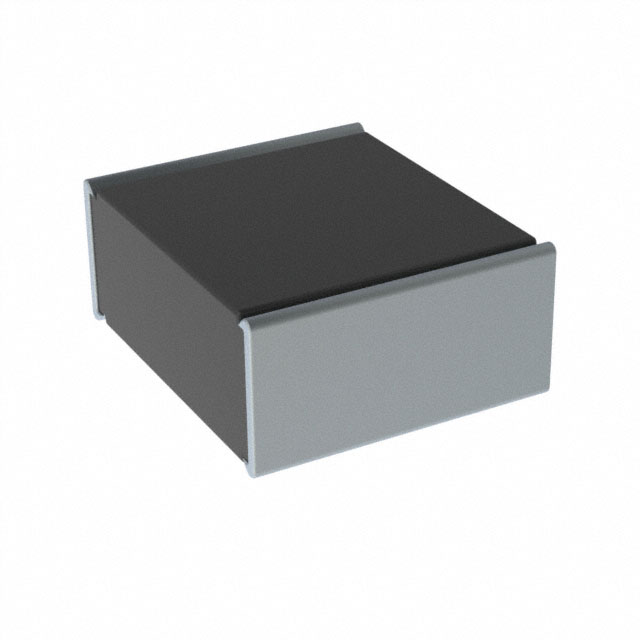

CAP FILM 0.1UF 10% 63VAC 2824
| Part | Tolerance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage Rating - AC | Dielectric Material | Voltage Rating - DC | Termination | Capacitance | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 % | 0.283 " | 7.2 mm | 6.1 mm | 0.24 " | 0.13 in | 3.3 mm | 2824 | 7260 Metric | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 100000 pF | |||||
10 % | 0.224 " | 5.7 mm | 5.1 mm | 0.201 " | 2220 | 5750 Metric | Surface Mount | -55 C | 125 °C | DC Filtering DC Link General Purpose | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | ||||||||
20 % | 0.283 " | 7.2 mm | 6.1 mm | 0.24 " | 0.13 in | 3.3 mm | 2824 | 7260 Metric | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 0.22 µF | |||||
10 % | 0.189 in | 0.13 in | 0.13 in | 3.3 mm | 1812 (4532 Metric) | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 15000 pF | 4.8 mm | 3.3 mm | ||||||
20 % | 0.283 " | 7.2 mm | 6.1 mm | 0.24 " | 0.13 in | 3.3 mm | 2824 | 7260 Metric | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 0.033 çF | |||||
20 % | 0.5 " | 12.7 mm | 10.2 mm | 0.402 in | 0.248 " | 6.3 mm | 5040 (127102 Metric) | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 2.2 µF | ||||||
10 % | 0.402 in | 10.2 mm | 7.6 mm | 0.299 " | 4030 (10276 Metric) | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 1 µF | 0.209 " | 5.3 mm | ||||||
10 % | 0.224 " | 5.7 mm | 5.1 mm | 0.201 " | 2220 | 5750 Metric | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 10000 pF | |||||||
10 % | 0.189 in | 0.13 in | 0.13 in | 3.3 mm | 1812 (4532 Metric) | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 0.022 µF | 4.8 mm | 3.3 mm | ||||||
20 % | 0.402 in | 10.2 mm | 7.6 mm | 0.299 " | 4030 (10276 Metric) | Surface Mount | -55 C | 125 °C | DC Filtering DC Link | 63 V | Metallized Polyester Polyethylene Terephthalate (PET) | 100 V | Solder Pads | 1500 nF | 0.209 " | 5.3 mm |
