G10A Series

Manufacturer: Serpac

Catalog

BOX ABS WHITE 4.38"L X 3.25"W

Part	Weight	Weight	Area (L x W)	Area (L x W)	Material	Material Flammability Rating	Container Type	Thickness	Thickness	Design	Height [z]	Height [z]	Features	Ratings	Color
Serpac G10A,WH	0.11 lb	49.9 g	14.2 in²	92 cm˛	ABS Plastic	UL94 HB	Box Potting	2.29 mm	0.09 in	Open End(s)	0.89 in	22.61 mm	PCB Supports	IP40	White

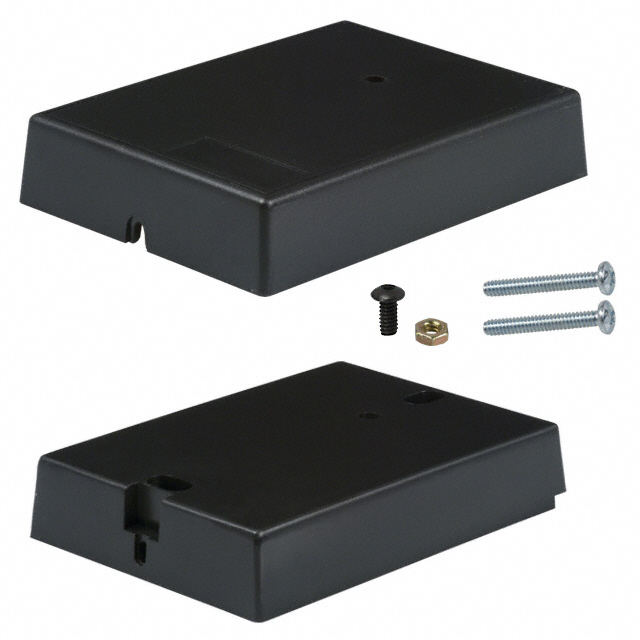

Serpac G10A,BK	0.11 lb	49.9 g	14.2 in²	92 cm˛	ABS Plastic	UL94 HB	Box Potting	2.29 mm	0.09 in	Open End(s)	0.89 in	22.61 mm	PCB Supports	IP40	Black

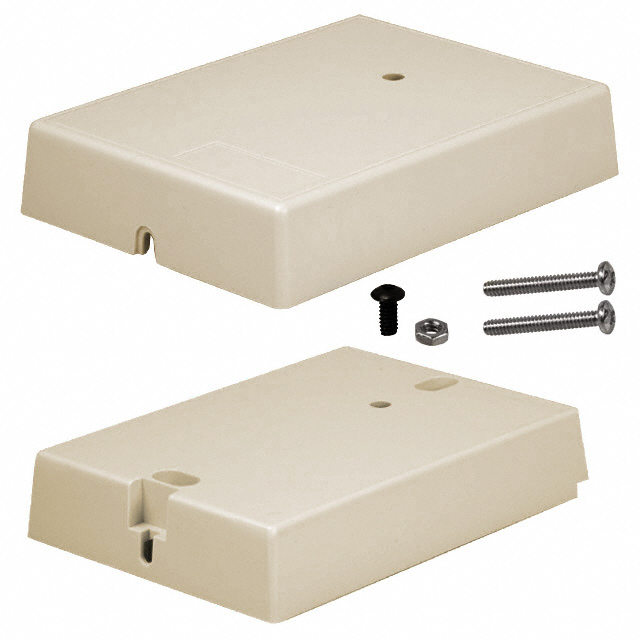

Serpac G10A,AL	0.11 lb	49.9 g	14.2 in²	92 cm˛	ABS Plastic	UL94 HB	Box Potting	2.29 mm	0.09 in	Open End(s)	0.89 in	22.61 mm	PCB Supports	IP40	Almond
