5180C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

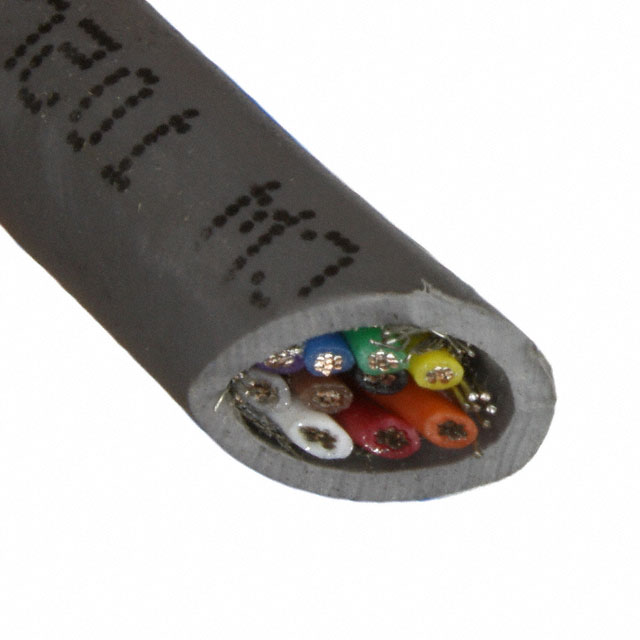

CBL 10COND 16AWG SHLD 1000=1000'
| Part | Shield Material | Shield Coverage | Number of Conductors [custom] | Wire Gauge | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Material | Voltage | Cable Type | Ratings | Features | Shield Type | Conductor Insulation | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 10 | 16 AWG | Slate | -35 °C | 105 ░C | Copper Tinned | 0.813 mm | 0.032 in | Communication Control | 11.68 mm | 0.46 in | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | ISO 10993 UL Style 2464 | Biological Compatibility Drain Wire Rip Cord | Braid Foil | Poly-Vinyl Chloride (PVC) | ||||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 10 | 16 AWG | Slate | -35 °C | 105 ░C | Copper Tinned | 0.813 mm | 0.032 in | Communication Control | 11.68 mm | 0.46 in | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | ISO 10993 UL Style 2464 | Biological Compatibility Drain Wire Rip Cord | Braid Foil | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 10 | 16 AWG | Slate | -35 °C | 105 ░C | Copper Tinned | 0.813 mm | 0.032 in | Communication Control | 11.68 mm | 0.46 in | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | ISO 10993 UL Style 2464 | Biological Compatibility Drain Wire Rip Cord | Braid Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
