020802.5 Series

FUSE 350V FA PT 2AG PB-FREE 2.5A

Catalog

FUSE 350V FA PT 2AG PB-FREE 2.5A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Response Time	Breaking Capacity @ Rated Voltage	Approval Agency	Current Rating (Amps)	Package / Case [y]	Package / Case [x]	Package / Case	Melting I²t	Voltage Rating - AC	Mounting Type	Fuse Type	DC Cold Resistance
LITTELFUSE 020802.5MXEP	-55 C	125 °C	14.48 mm	4.7 mm	0.57 in	0.185 in	Fast Blow	100 A	CE cURus PSE	2.5 A	15 mm	5 mm	2AG	2.68	350 V	Through Hole	Cartridge Glass
LITTELFUSE 020802.5DRT1P	-55 C	125 °C	14.48 mm	4.7 mm	0.57 in	0.185 in	Fast Blow	100 A	CE cURus PSE	2.5 A	15 mm	5 mm	2AG	2.68	350 V	Requires Holder	Cartridge Glass
LITTELFUSE 020802.5MXP	-55 C	125 °C	14.48 mm	4.7 mm	0.57 in	0.185 in	Fast Blow	100 A	CE cURus PSE	2.5 A	15 mm	5 mm	2AG	2.68	350 V	Requires Holder	Cartridge Glass	0.0372 Ohms

Catalog

FUSE 350V FA PT 2AG PB-FREE 2.5A

Description

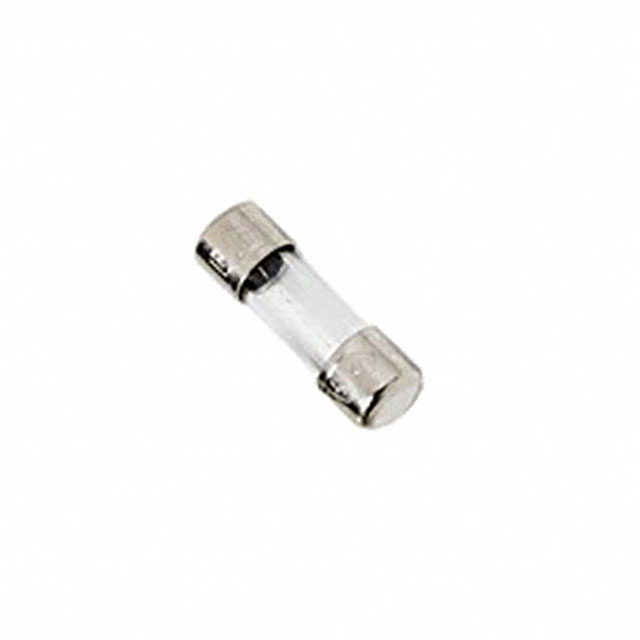

Littelfuse 208 Series 350V fast-acting fuses are available in cartridge form or with axial leads. This series provides the same performance characteristics as its 3AG counterpart, while occupying one-third the space. Sleeved fuses are available.
