TL1016 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Orientation	Circuit	Termination Style	Actuator Type	Switch Function	Actuator Length, Right Angle	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating @ Voltage	Operating Force
E-Switch TL1016BAF160QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	160 gf
E-Switch TL1016AAF160QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	160 gf

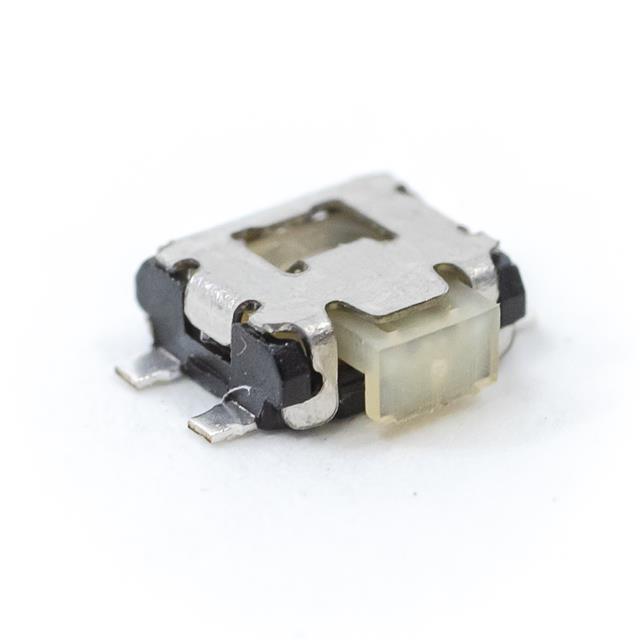

E-Switch TL1016AAF220QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	220 gf
E-Switch TL1016BAF220QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	220 gf
E-Switch TL1016ABF220QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	220 gf

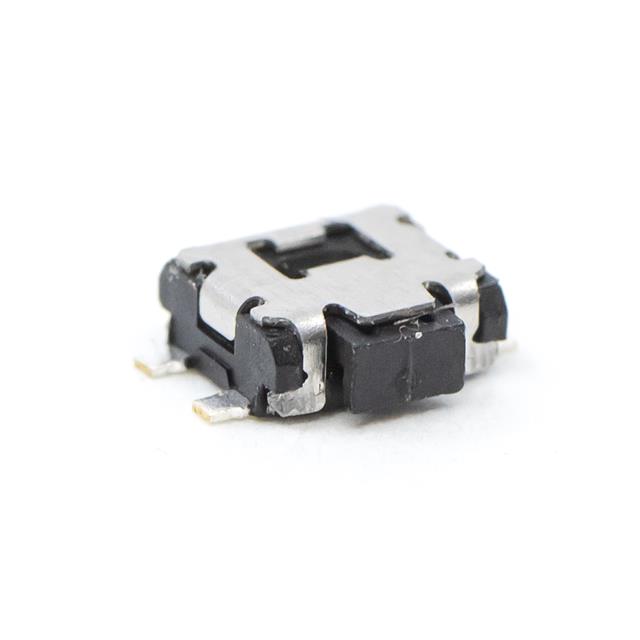

E-Switch TL1016ABF160QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	160 gf
E-Switch TL1016BBF160QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	160 gf
E-Switch TL1016BBF220QG	0.2 mm	100000 Cycles	Side Actuated	SPST-NO	Gull Wing	Rectangular Button	Off-Mom	3.55 mm	2.9 mm	4.7 mm	85 °C	-40 C	Right Angle Surface Mount	0.05 A 12 VDC	220 gf
