fakra-generation-2 Series
Manufacturer: Amphenol RF
Beta
⌘K
CONN FAKRA JACK STR 50 OHM CRIMP
| Part | Body Finish | Center Contact Material | Contact Termination | Features | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Frequency - Max [Max] | Housing Color | Fastening Type | Body Material | Mounting Type | Impedance | Dielectric Material | Number of Ports | Insertion Loss | Cable Group | Connector Type | Shield Termination | Center Contact Plating | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

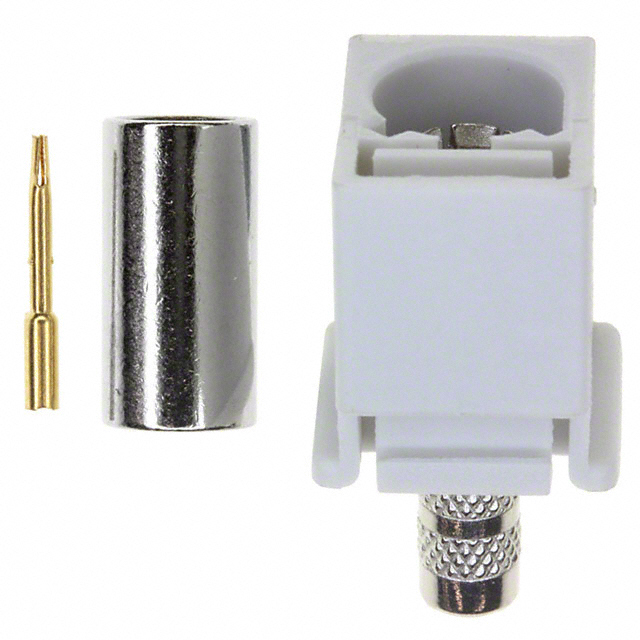

 Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code B | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Cream | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |

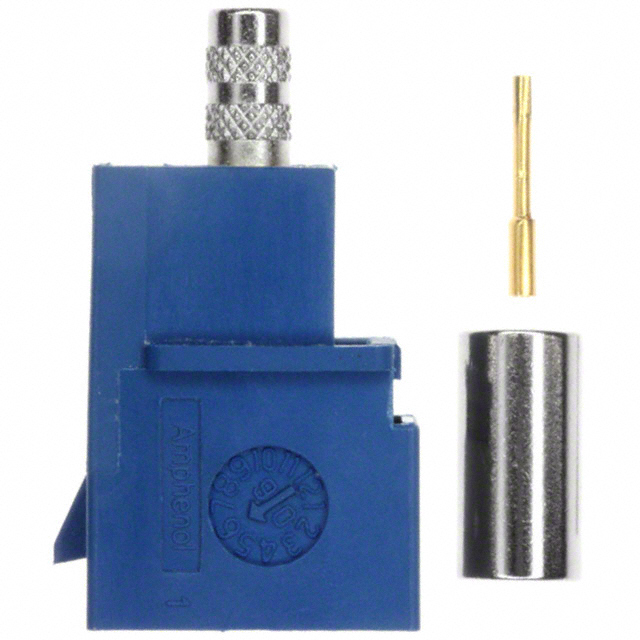

 Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code C | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Blue Signal | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |

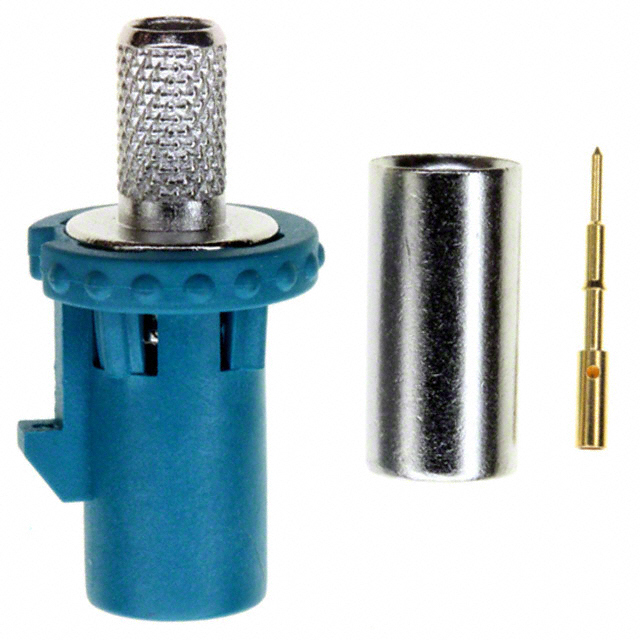

 Amphenol RF | Nickel | Brass | Crimp | Code Z | 115 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Locking Ramp | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Male Pin Plug | Crimp | Gold | Fakra SMB | |

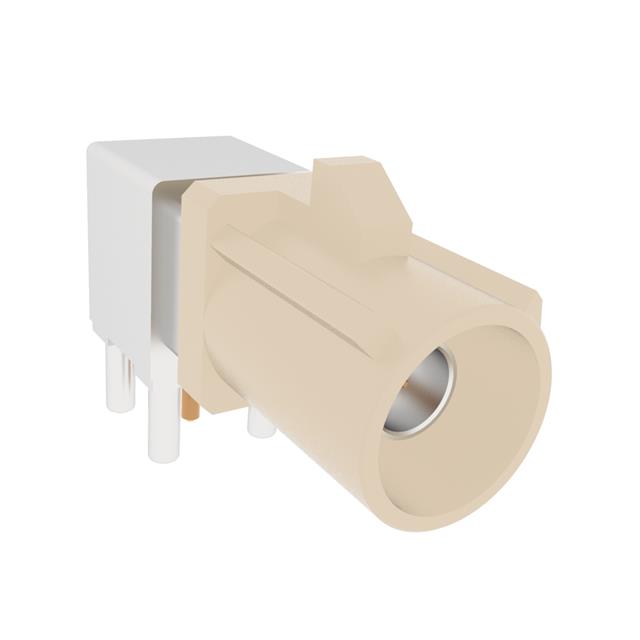

 Amphenol RF | Tin | Brass | Solder | Code B | 165 °C | -65 ░C | 4 GHz | Cream | Locking Ramp | Zinc Die Cast | Through Hole Right Angle | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||

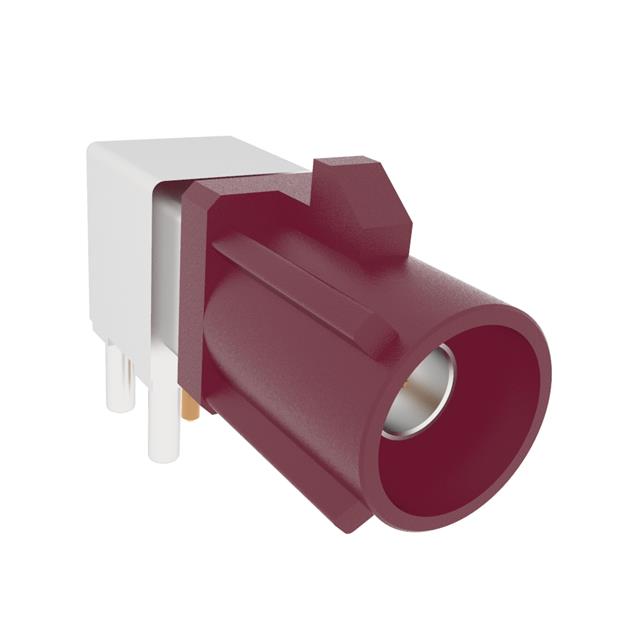

 Amphenol RF | Tin | Brass | Solder | Code D | 165 °C | -65 ░C | 4 GHz | Claret Violet | Locking Ramp | Zinc Die Cast | Through Hole Right Angle | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||

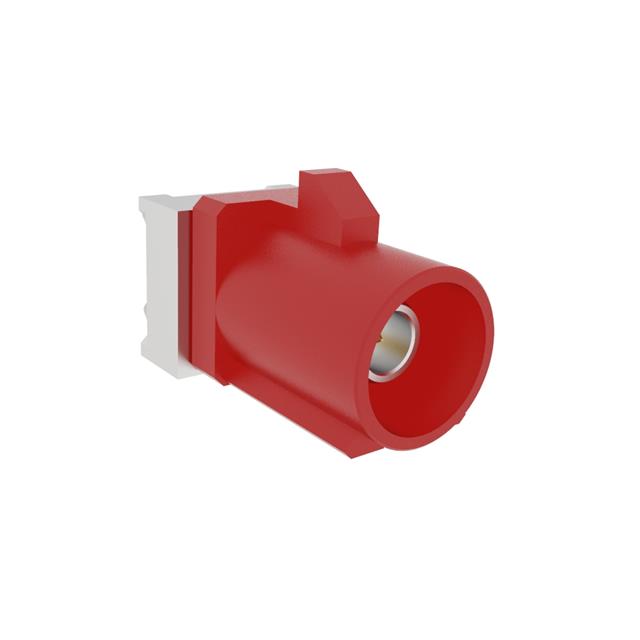

 Amphenol RF | Tin | Brass | Solder | Code L | 85 °C | -40 °C | 3 GHz | Carmine Red | Locking Ramp | Zinc Die Cast | Through Hole | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||

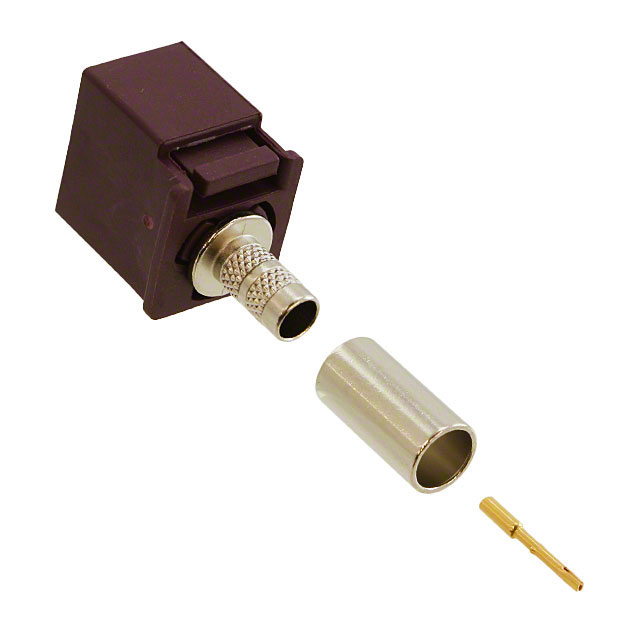

 Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code D | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 6000 MHz | Claret Violet | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |

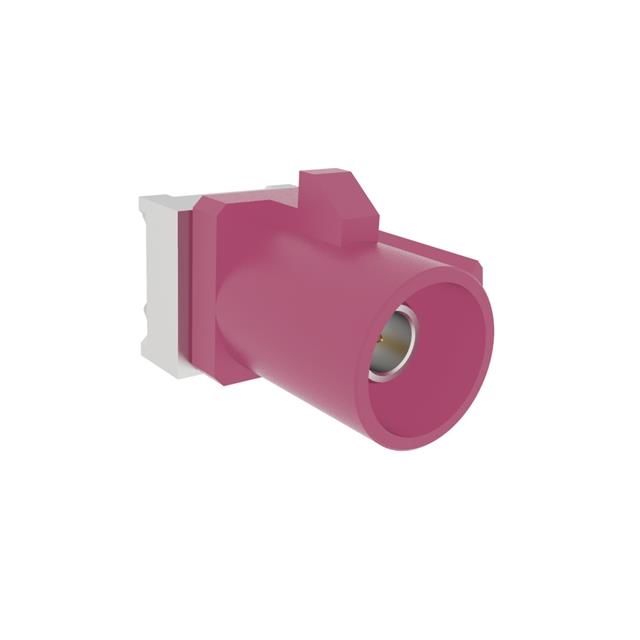

 Amphenol RF | Tin | Brass | Solder | Code H | 85 °C | -40 °C | 3 GHz | Heather Violet | Locking Ramp | Zinc Die Cast | Through Hole | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Male Pin Plug | Solder | Gold | Fakra SMB | |||

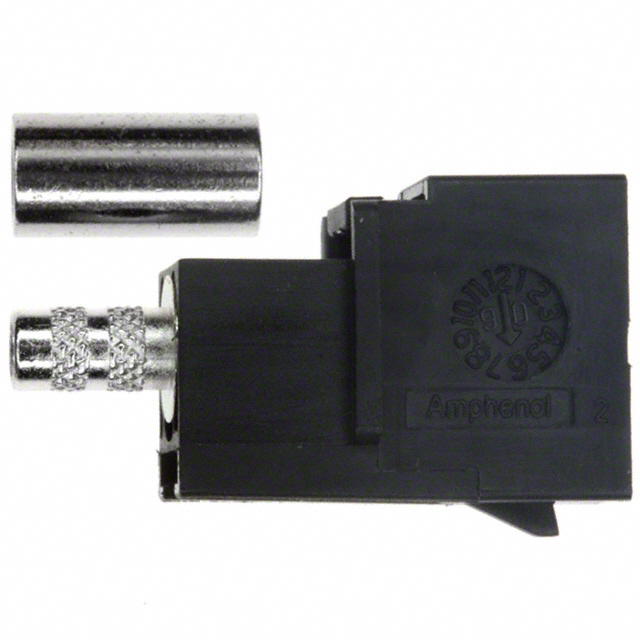

 Amphenol RF | Nickel | Phosphor Bronze | Crimp | Code A | 100 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Black Jet | Latch Lock | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Female Socket Jack | Crimp | Gold | Fakra SMB |

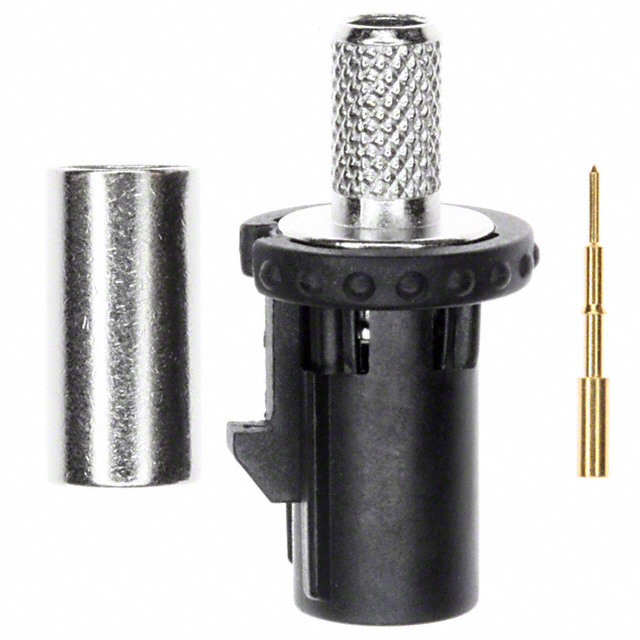

 Amphenol RF | Nickel | Brass | Crimp | Code A | 115 °C | -40 °C | 1 Connector 1 Contact 1 Ferrule | 4 GHz | Black Jet | Locking Ramp | Zinc Die Cast | Free Hanging (In-Line) | 50 Ohms | Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE) | 1 | 0.3 dB | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Male Pin Plug | Crimp | Gold | Fakra SMB |
