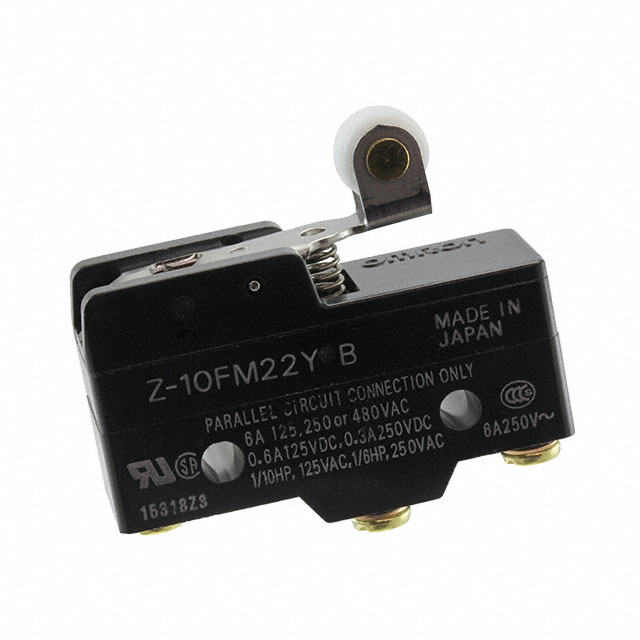

Z-10FM22 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 125V
| Part | Current Rating (Amps) | Operating Force | Voltage Rating - AC | Operating Position | Operating Position | Termination Style | Differential Travel | Differential Travel | Switch Function | Circuit | Release Force | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Electrical Life | Mechanical Life | Overtravel [custom] | Overtravel [custom] | Actuator Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 10 A | 650 gf | 125 V | 1.156 in | 29.4 mm | Screw Terminal | 0.022 " | 0.56 mm | On-Mom | SPDT (DB/DM) | 170 gf | 30 V | -25 °C | 80 °C | Chassis Mount | 100000 Cycles | 500000 Cycles | 0.079 " | 2 mm | Lever Roller | IP00 |
