10E Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

LINE FILTER 250VAC 10A CHASSIS

Part	Configuration	Applications	Mounting Type	Approval Agency	Termination Style	Voltage - Rated AC	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Filter Type	Termination	Termination	Termination	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Connector Style	Current Rating - Appliance Inlet	Current Rating - Filter	Panel Cutout Dimensions	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]

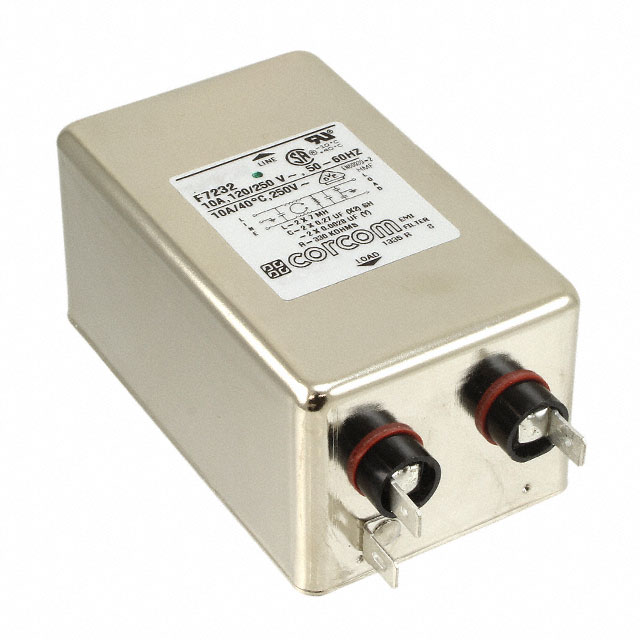

TE Connectivity Corcom Filters 10ESK7	Single Stage	General Purpose	Chassis Mount	CSA UR VDE	IEC 320-C14 Quick Connect	250 V	7.13 mH	40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase

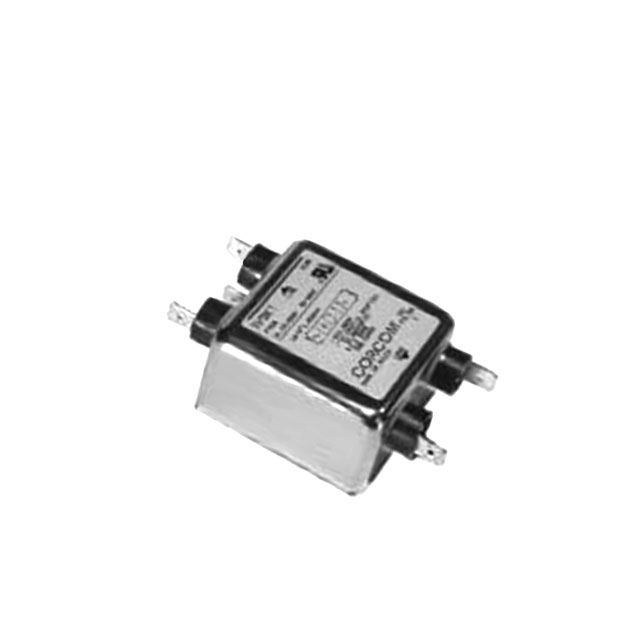

TE Connectivity Corcom Filters 10EDK1	Single Stage	General Purpose	Chassis Mount	CSA UR VDE	Quick Connect	250 V	495 µH	40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase
TE Connectivity Corcom Filters 10EH1	Single Stage	General Purpose	Chassis Mount	CSA UR VDE	Quick Connect	250 V	360 µH	40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase

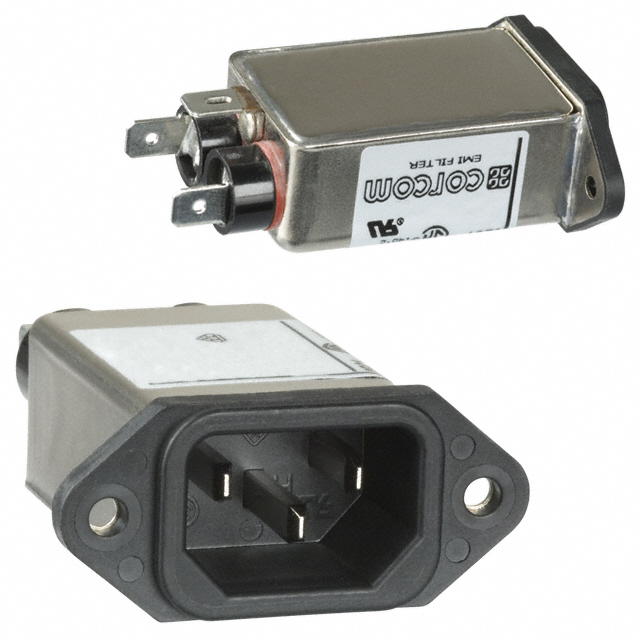

TE Connectivity Corcom Filters 10EC1			Flange Panel Mount	CSA UL VDE									Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	120 VAC	250 VAC	IEC 320-C14	10 A	10 A	Variable Size	Front or Rear Side Mount
TE Connectivity Corcom Filters 10EH4			Flange Panel Mount	CSA UL VDE									Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	120 VAC	250 VAC	IEC 320-C14	10 A	10 A			30.48 mm	20.83 mm

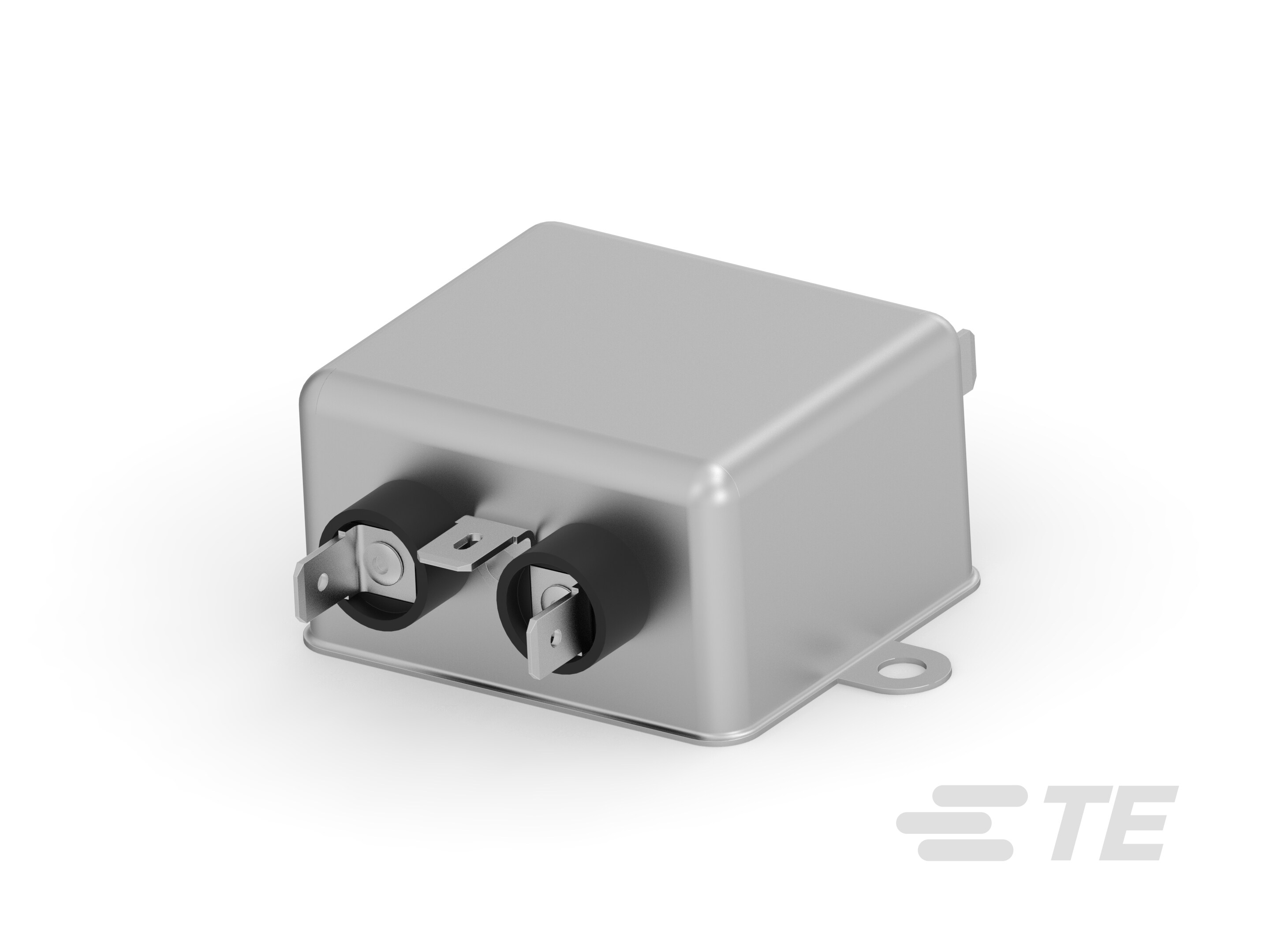

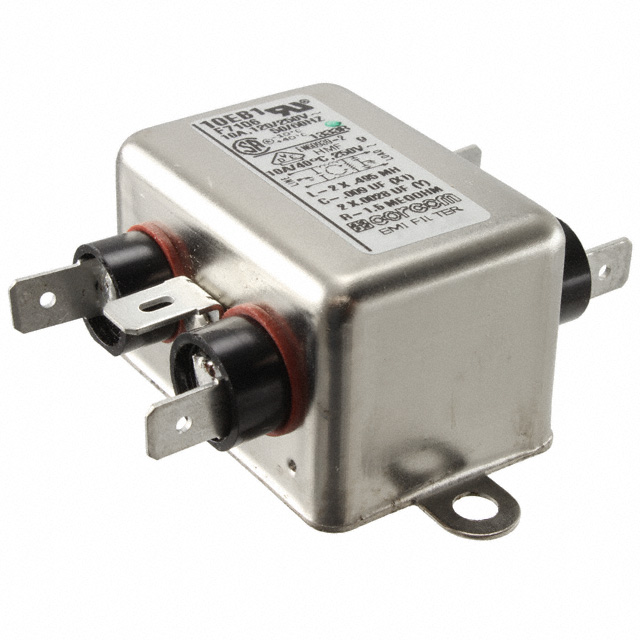

TE Connectivity Corcom Filters 10EB1	Single Stage	General Purpose	Chassis Mount	CSA UR VDE	Quick Connect	250 V	495 µH	40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase

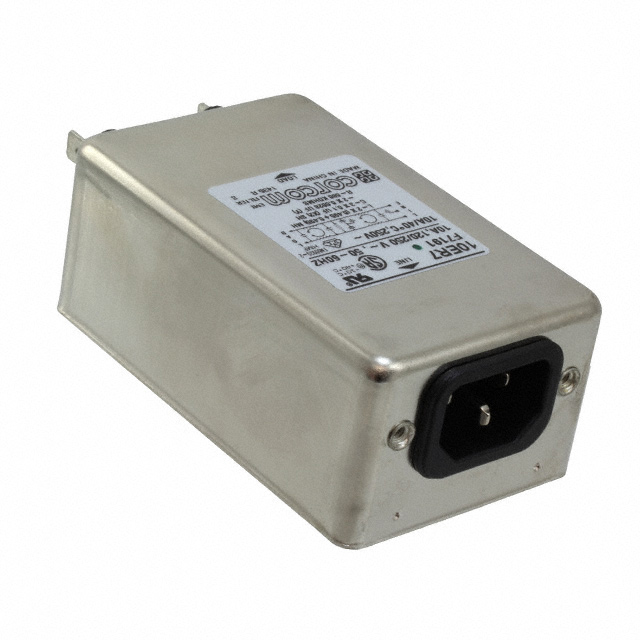

TE Connectivity Corcom Filters 10ER7	Two Stage	General Purpose	Chassis Mount	CSA UR VDE	IEC 320-C14 Quick Connect	250 V	990 µH	40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase

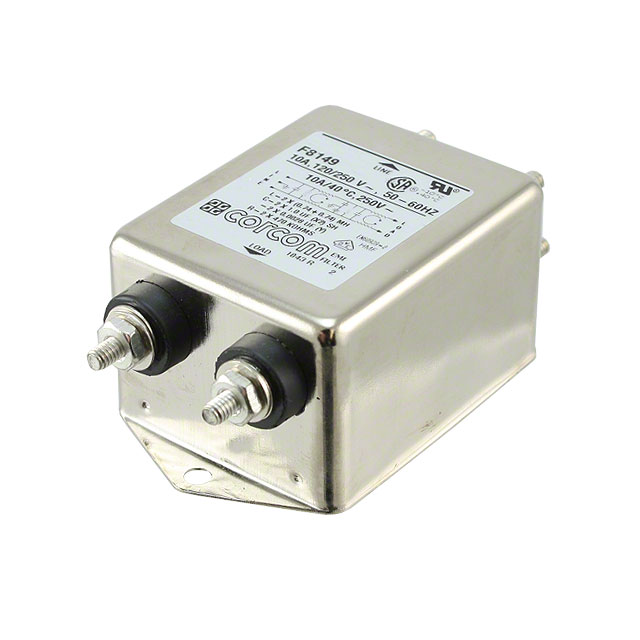

TE Connectivity Corcom Filters 10EMC6	Two Stage	General Purpose	Chassis Mount	CSA UR VDE	Threaded Post (8-32)	250 V		40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase

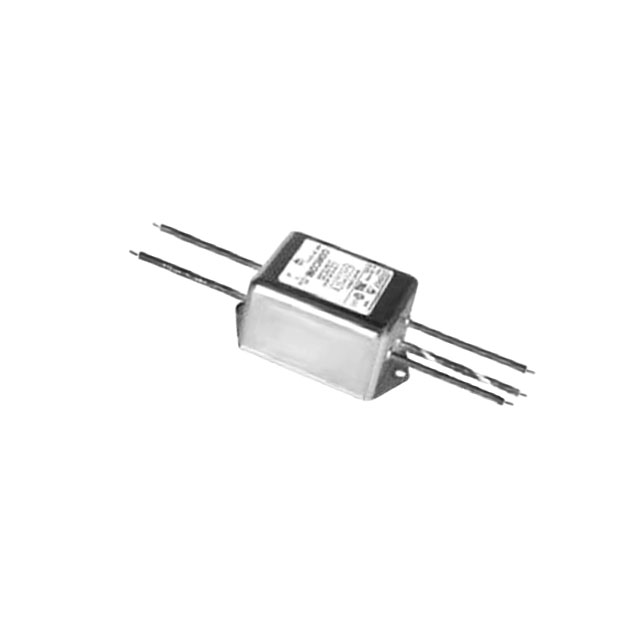

TE Connectivity Corcom Filters 10ESK3	Single Stage	General Purpose	Chassis Mount	CSA UR VDE	Wire Leads	250 V	7.13 mH	40 °C	-10 °C	60 Hz	50 Hz	10 A	Single Phase

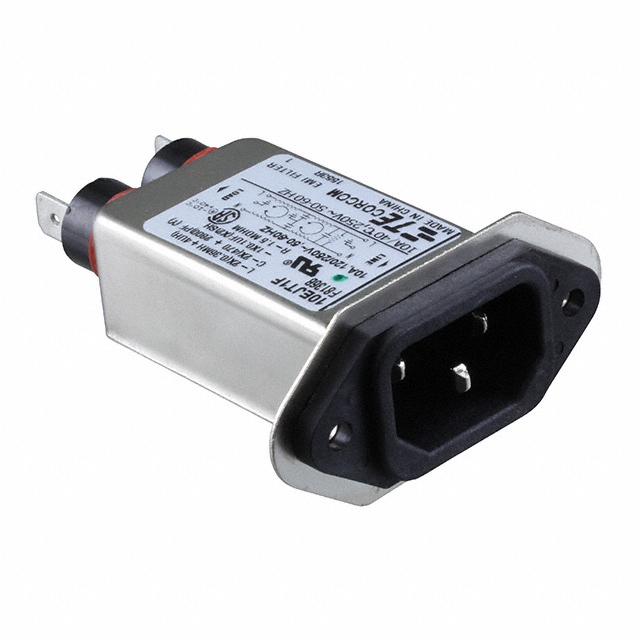

TE Connectivity Corcom Filters 10EJT1F			Flange Panel Mount										Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades			IEC 320-C14		10 A
