HPCP41 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

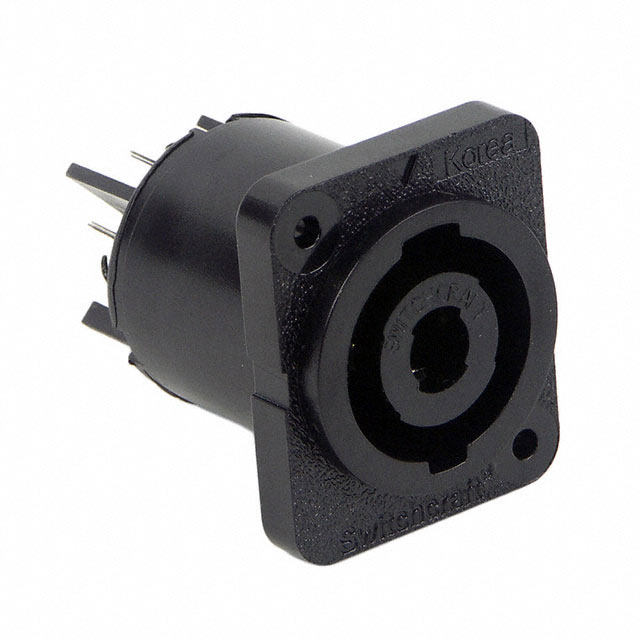

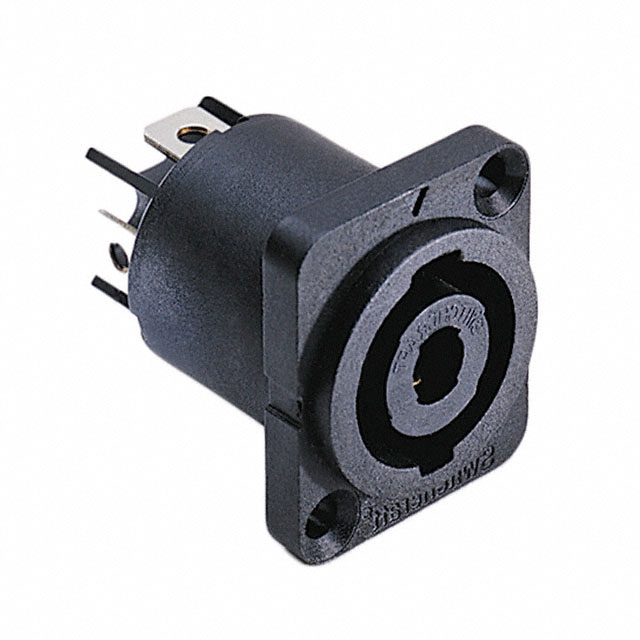

CONN POWER F 4POWER POS FASTON ST PANEL MOUNT 4 TERMINAL 1 PORT
| Part | Material Flammability Rating | Termination | Termination | Termination | Ingress Protection | Current Rating (Amps) | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Shielding | Contact Material | Number of Positions | Fastening Type | Color | Applications | Mounting Feature | Primary Material | Insert Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | UL94 V-0 | 0.187 " | 4.7 mm | Quick Connect | IP25 | 50 A | Silver | 85 °C | -55 °C | Keyed | Unshielded | Copper Alloy | 4 | Latch Lock Push-Pull | Black | Audio Industrial Medical | Flange | Plastic | Thermoplastic | Receptacle Non-Gendered |
 Switchcraft Inc. | UL94 V-0 | 0.25 in | 6.3 mm | Quick Connect | IP25 | 50 A | Silver | 85 °C | -55 °C | Keyed | Unshielded | Copper Alloy | 4 | Latch Lock Push-Pull | Black | Audio Industrial Medical | Flange | Plastic | Thermoplastic | Receptacle Non-Gendered |
 Switchcraft Inc. | UL94 V-0 | 0.25 in | 6.3 mm | Quick Connect | IP25 | 50 A | Silver | 85 °C | -55 °C | Keyed | Unshielded | Copper Alloy | 4 | Latch Lock Push-Pull | Black | Audio Industrial Medical | Flange | Plastic | Thermoplastic | Receptacle Non-Gendered |
