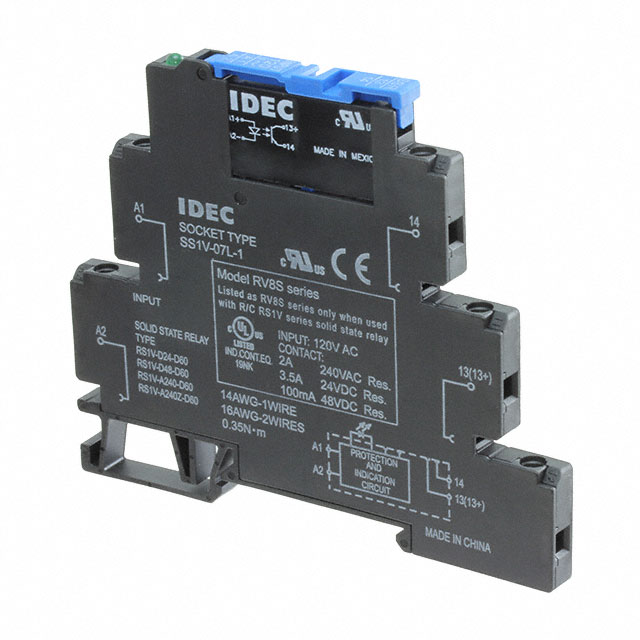

RV8S-L Series

Manufacturer: IDEC

Catalog

SOLID STATE RELAY, SPST-NO, 2 A, 280 VAC, PANEL MOUNT, SCREW, ZERO CROSSING

Part	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Output Type	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Mounting Type	Package / Case	Voltage - Input
IDEC RV8S-L-A240Z-A240	192 VAC	264 VAC	-20 ░C	60 °C	Screw Terminal	AC Zero Cross	2 A	24 V	280 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-D24-A120	96 VAC	132 VAC	-20 ░C	60 °C	Screw Terminal	DC	3.5 A	0 V	24 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-A240-A240	192 VAC	264 VAC	-20 ░C	60 °C	Screw Terminal	AC	2 A	24 V	280 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-D48-A240	192 VAC	264 VAC	-20 ░C	60 °C	Screw Terminal	DC	100 mA	0 V	48 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-D24-A240	192 VAC	264 VAC	-20 ░C	60 °C	Screw Terminal	DC	3.5 A	0 V	24 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-A240-A120	96 VAC	132 VAC	-20 ░C	60 °C	Screw Terminal	AC	2 A	24 V	280 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-D48-D24	19.6 VDC	30 V	-20 ░C	60 °C	Screw Terminal	DC	100 mA	0 V	48 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-D48-D6	4.5 V	12 VDC	-20 ░C	60 °C	Screw Terminal	DC	100 mA	0 V	48 V	CE cULus	DIN Rail	Module	6 VDC
IDEC RV8S-L-A240Z-D24	19.6 VDC	30 V	-20 ░C	60 °C	Screw Terminal	AC Zero Cross	2 A	24 V	280 V	CE cULus	DIN Rail	Module
IDEC RV8S-L-A240-D24	19.6 VDC	30 V	-20 ░C	60 °C	Screw Terminal	AC	2 A	24 V	280 V	CE cULus	DIN Rail	Module
