ISO124 Series

±10-V input, precision voltage sensing low-cost isolated amplifier

Catalog

±10-V input, precision voltage sensing low-cost isolated amplifier

Part	Package / Case	Package / Case	Amplifier Type	Current - Output / Channel	Mounting Type	Supplier Device Package	-3db Bandwidth	Current - Supply	Voltage - Supply Span (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input Offset	Slew Rate	Number of Circuits	Package / Case [custom]	Package / Case [custom]

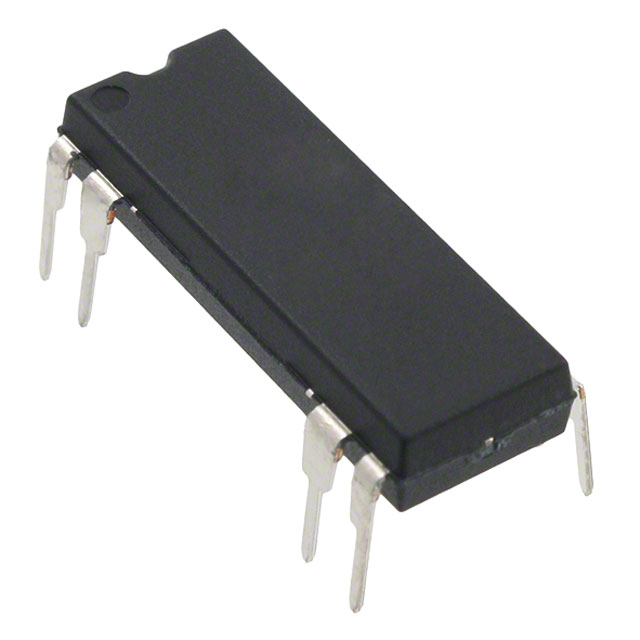

Texas Instruments ISO124P	0.3 in 7.62 mm	16-DIP 8 Leads	Isolation	15 mA	Through Hole	8-PDIP	50 kHz	5 mA	36 V	-25 °C	85 °C	20 mV	2 V/µs	1

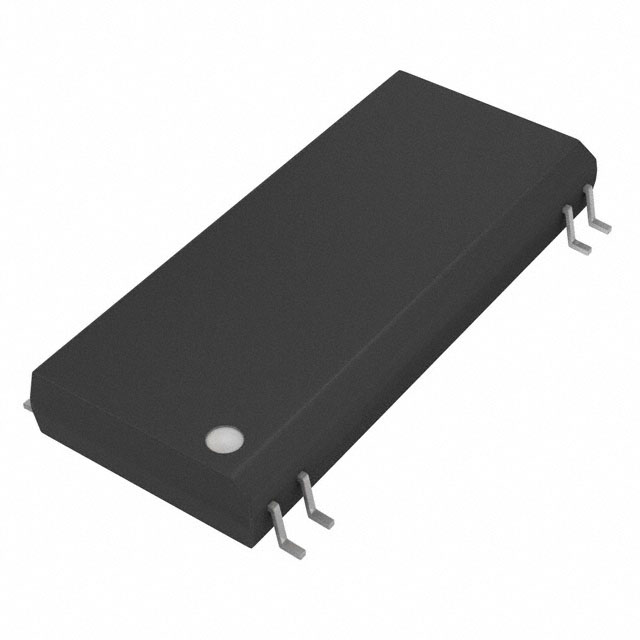

Texas Instruments ISO124U/1KG4	8 Leads	28-SOIC	Isolation	15 mA	Surface Mount	8-SOIC	50 kHz	5 mA	36 V	-25 °C	85 °C	20 mV	2 V/µs	1	0.295 in	7.5 mm
Texas Instruments ISO124U	8 Leads	28-SOIC	Isolation	15 mA	Surface Mount	8-SOIC	50 kHz	5 mA	36 V	-25 °C	85 °C	20 mV	2 V/µs	1	0.295 in	7.5 mm

Catalog

±10-V input, precision voltage sensing low-cost isolated amplifier

Key Features

• 100% Tested for High-Voltage BreakdownRated 1500 VrmsHigh IMR: 140 dB at 60 HzMaximum Nonlinearity: 0.010%Bipolar Operation: VO= ±10 VPackages: PDIP-16 and SOIC-28Ease of Use: Fixed Unity Gain ConfigurationSupply Range: ±4.5-V to ±18-V100% Tested for High-Voltage BreakdownRated 1500 VrmsHigh IMR: 140 dB at 60 HzMaximum Nonlinearity: 0.010%Bipolar Operation: VO= ±10 VPackages: PDIP-16 and SOIC-28Ease of Use: Fixed Unity Gain ConfigurationSupply Range: ±4.5-V to ±18-V

Description

The ISO124 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation, the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO124 is easy to use. No external components are required for operation. The key specifications are 0.010% maximum nonlinearity, 50-kHz signal bandwidth, and 200-µV/°C VOSdrift. A power supply range of ±4.5 V to ±18 V, and quiescent currents of ±5 mA on VS1and ±5.5 mA on VS2make the ISO124 device a good choice for a wide range of applications. The ISO124 is available in 16-pin PDIP and 28-lead SOIC plastic surface-mount packages. The ISO124 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation, the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO124 is easy to use. No external components are required for operation. The key specifications are 0.010% maximum nonlinearity, 50-kHz signal bandwidth, and 200-µV/°C VOSdrift. A power supply range of ±4.5 V to ±18 V, and quiescent currents of ±5 mA on VS1and ±5.5 mA on VS2make the ISO124 device a good choice for a wide range of applications. The ISO124 is available in 16-pin PDIP and 28-lead SOIC plastic surface-mount packages.
