293653 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

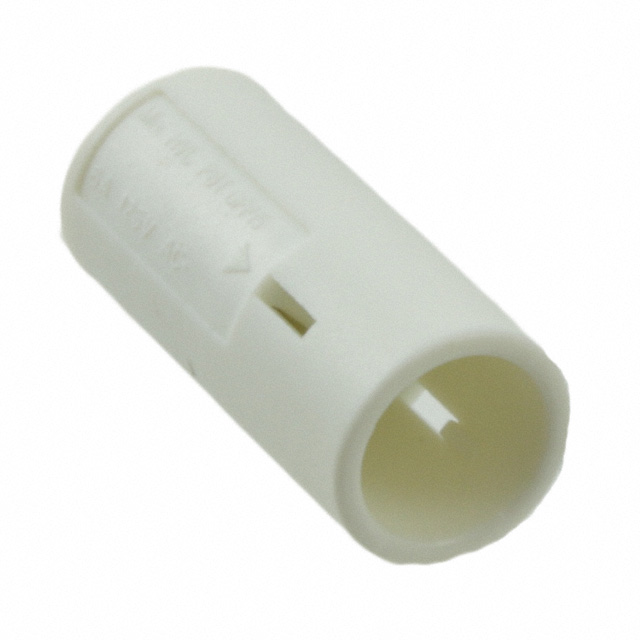

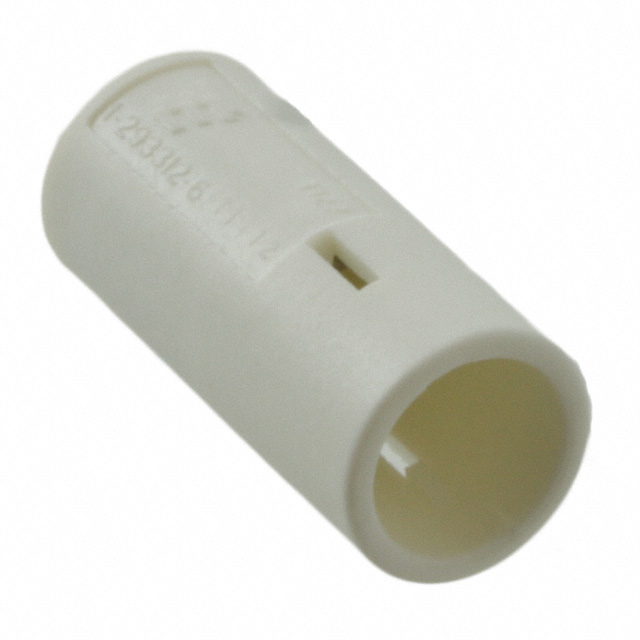

CONN SSL OUTLET HDR 2POS 3.7MM
| Part | Current Rating (Amps) | Pitch [x] | Pitch [x] | Contact Finish | Style | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Mounting Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6 A | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | White | -40 °C | 120 °C | 2 | Solder | Through Hole | Board Guide Keying HV-3 | 125 VDC |
 TE Connectivity Raychem Cable Protection | 6 A | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | White | -40 °C | 120 °C | 2 | Solder | Through Hole | Board Guide Keying HV-4 | 125 VDC |
