505151 Series

Manufacturer: Molex

Catalog

DURACLIK TPA WIRE-TO-BOARD RECEPTACLE HOUSING, 4 CIRCUITS, WHITE

Part	Color	Fastening Type	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Type	Contact Termination	Mounting Type	Note	Features

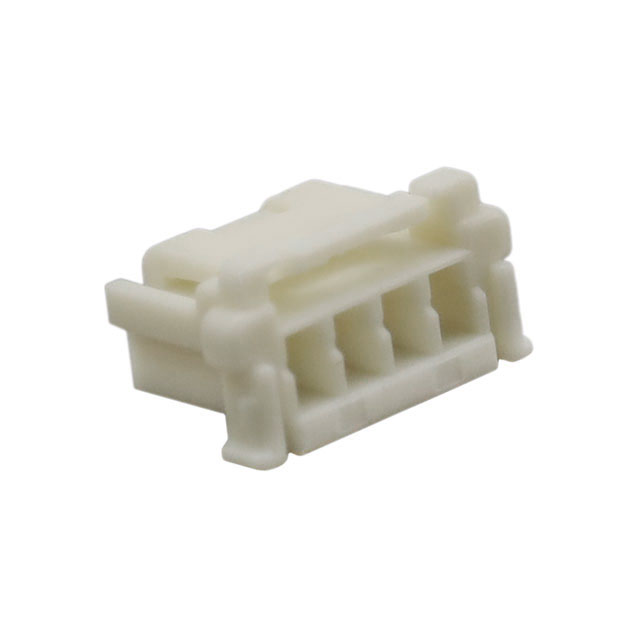

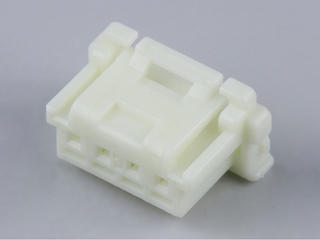

Molex 5051510401	White	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	4	Female Socket	Crimp	Free Hanging (In-Line)

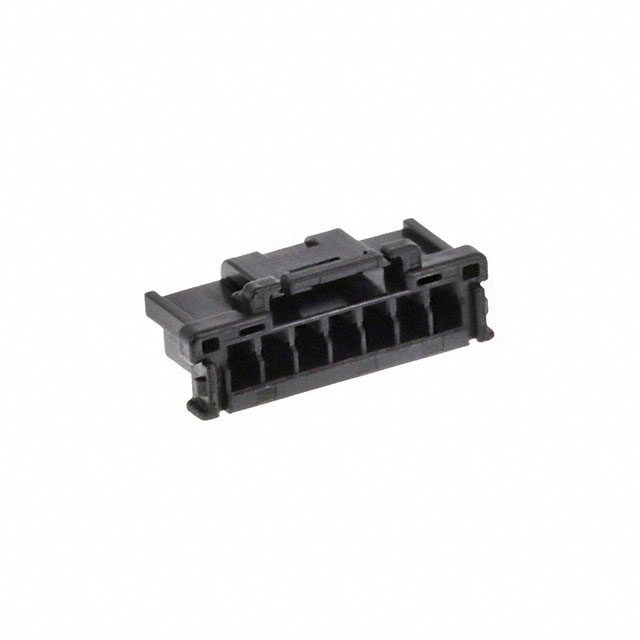

Molex 5051510700	Black	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	7	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included

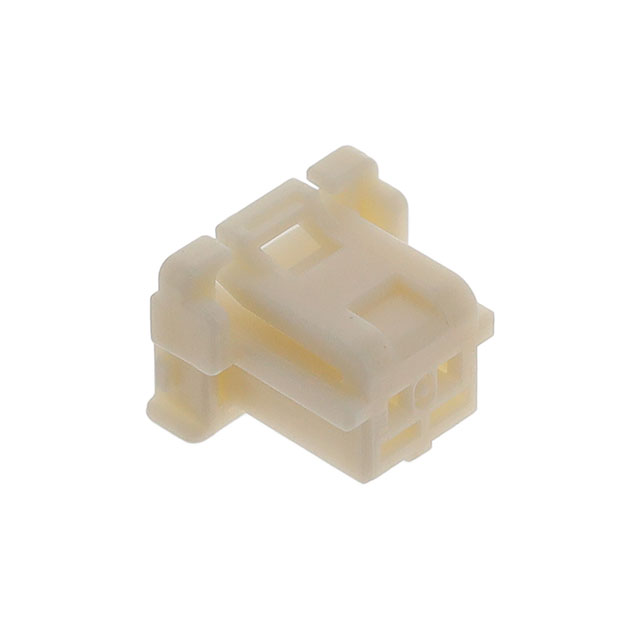

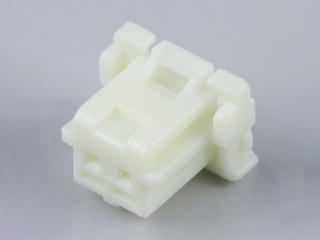

Molex 5051510201	White	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	2	Female Socket	Crimp	Free Hanging (In-Line)

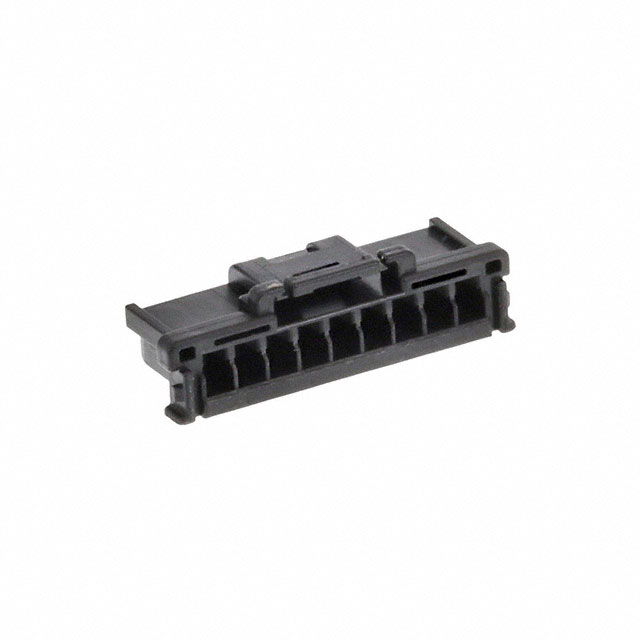

Molex 5051510900	Black	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	9	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included

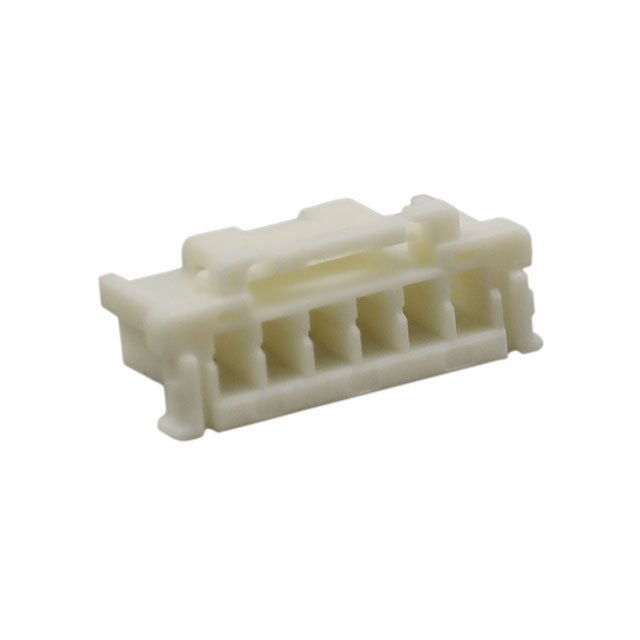

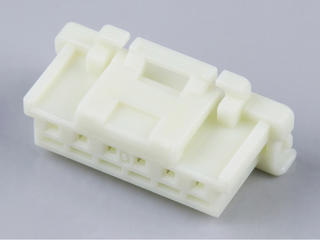

Molex 5051510601	White	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	6	Female Socket	Crimp	Free Hanging (In-Line)

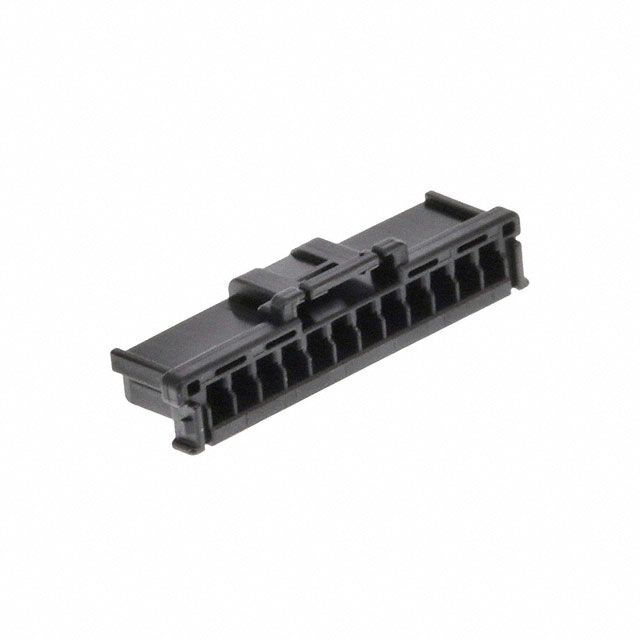

Molex 5051511200	Black	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	12	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included

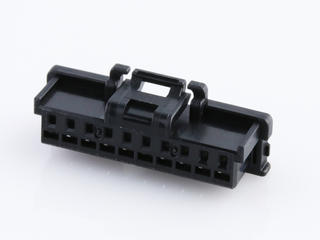

Molex 5051511000	Black	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	10	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included

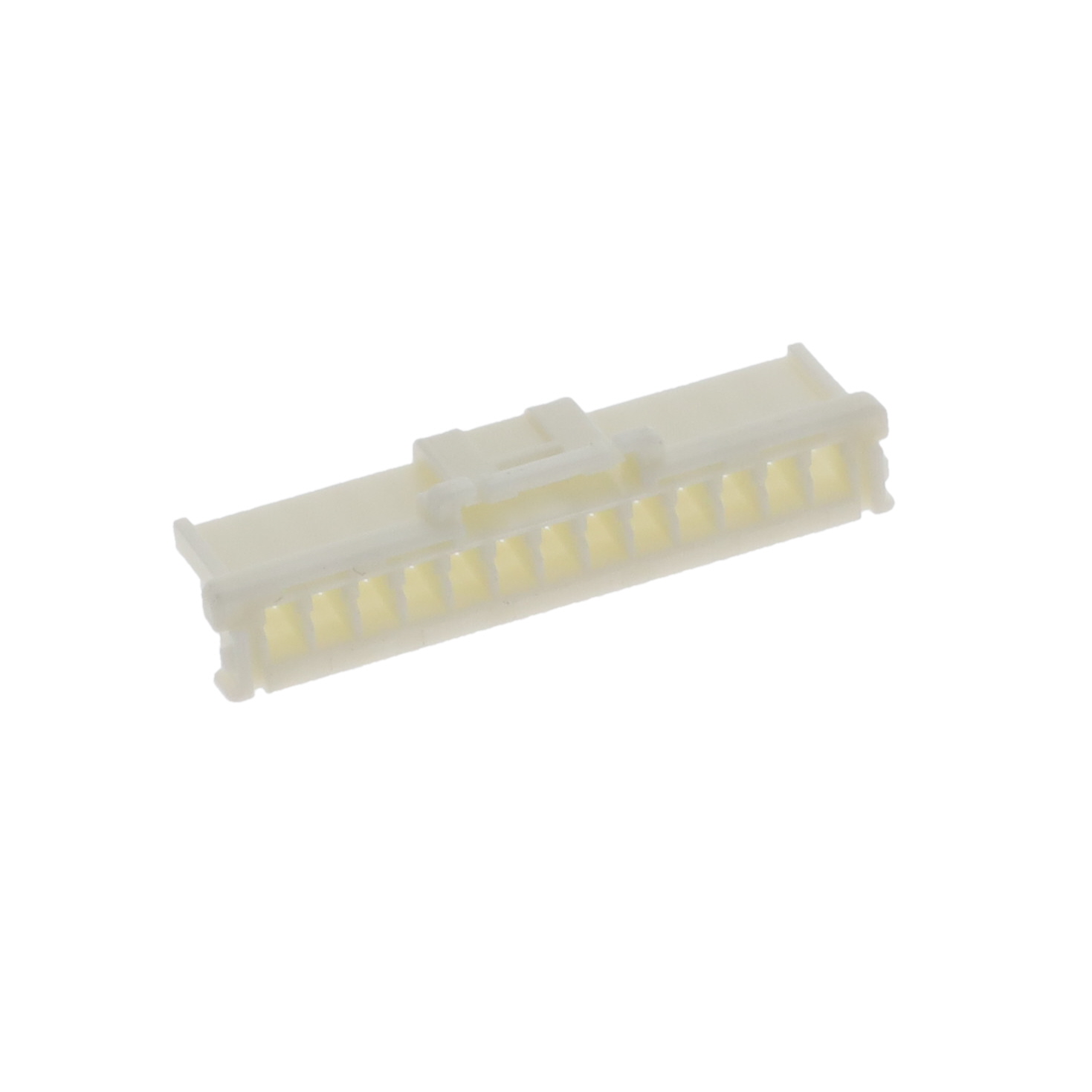

Molex 5051511301	White	Latch Holder	0.079 in	2 mm	Receptacle	1	Polyester	125 °C	-40 °C	13	Female Socket	Crimp	Free Hanging (In-Line)		Terminal Position Lock (TPA)

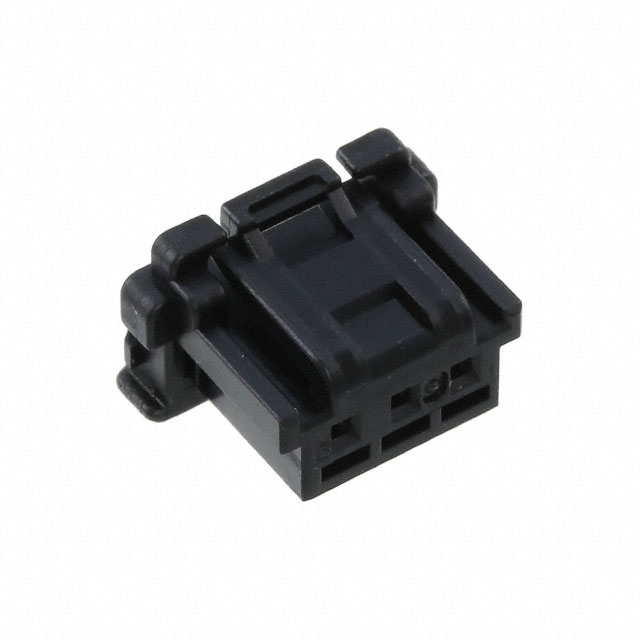

Molex 5051510300	Black	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C		Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included

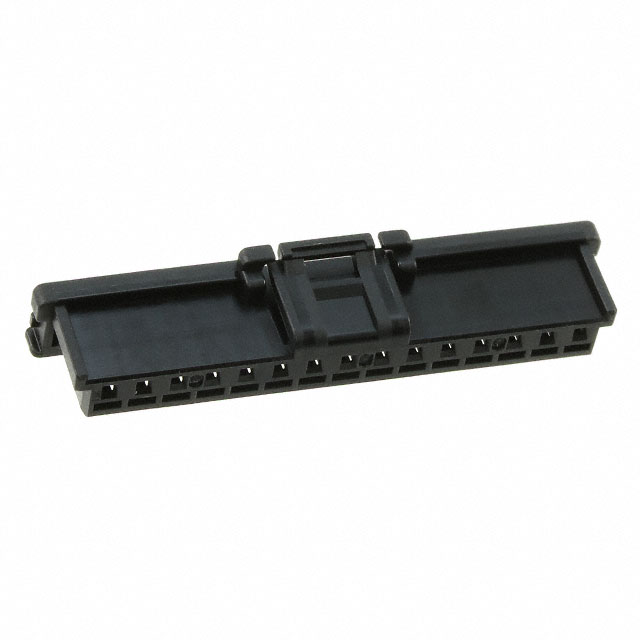

Molex 5051511500	Black	Latch Holder	0.079 in	2 mm	Receptacle	1	Nylon Polyamide (PA)	125 °C	-40 °C	15	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included
