1106461 Series

Catalog

HOOD 180° 8 SHELL SIZE ALUMINUM DIE CAST

Part	Lock Location	Connector Type	Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Housing Color	Style	Housing Finish	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size

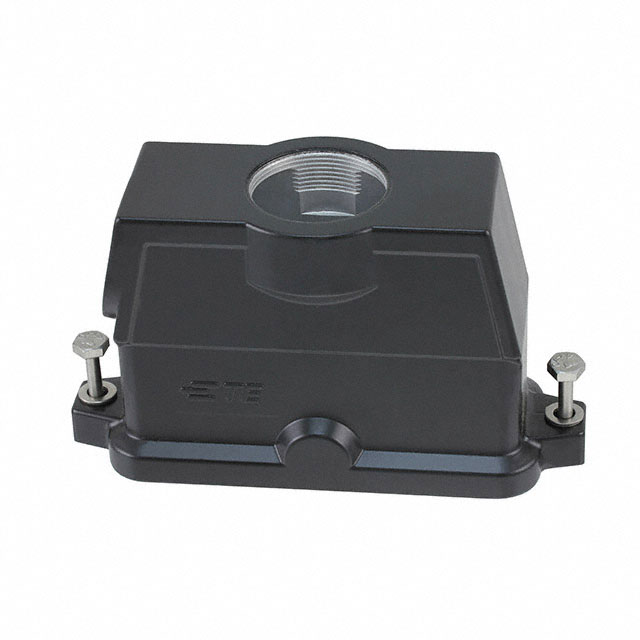

TE Connectivity AMP Connectors 1106461-4	Screw Locks on Hood	Hood	8	90 mm	156 mm	2.087 "	53 mm	3.543 "	6.142 "	IP68 - Dust Tight Waterproof	Black	Top Entry	EMC Coating	Aluminum Alloy Die Cast
TE Connectivity AMP Connectors 1106461-1	Screw Locks on Hood	Hood	8	90 mm	156 mm	2.087 "	53 mm	3.543 "	6.142 "	IP68 - Dust Tight Waterproof	Gray	Top Entry	Powder Coated	Aluminum Alloy Die Cast	80 °C	-40 C
TE Connectivity AMP Connectors 1106461-8	Screw Locks on Hood	Hood	8	90 mm	156 mm	2.087 "	53 mm	3.543 "	6.142 "	IP68 - Dust Tight Waterproof	Black	Side Entry	Chromite TCP Passivation	Aluminum Alloy Die Cast	80 °C	-40 C	M32

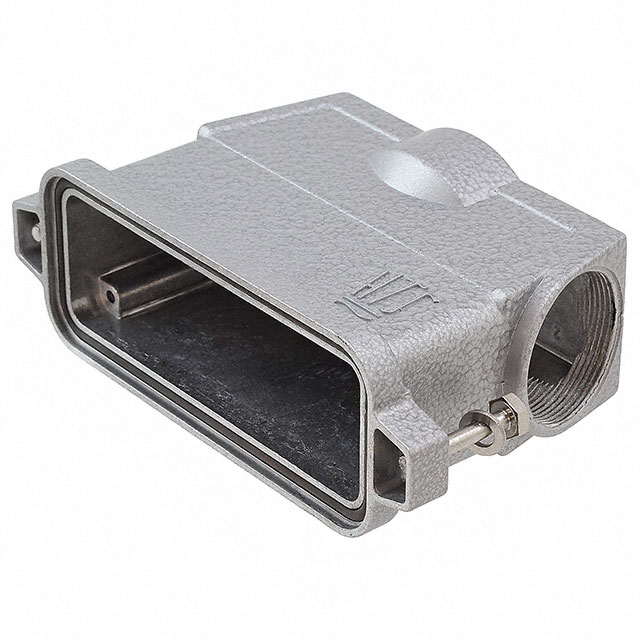

TE Connectivity AMP Connectors 1106461-2	Screw Locks on Hood	Hood	8	90 mm	156 mm	2.087 "	53 mm	3.543 "	6.142 "	IP68 - Dust Tight Waterproof	Gray	Side Entry	Powder Coated	Aluminum Alloy Die Cast	80 °C	-40 C
TE Connectivity AMP Connectors 1106461-9	Screw Locks on Hood	Hood	8	90 mm	156 mm	2.087 "	53 mm	3.543 "	6.142 "	IP68 - Dust Tight Waterproof	Black	Side Entry	Chromite TCP Passivation	Aluminum Alloy Die Cast	80 °C	-40 C	M32
