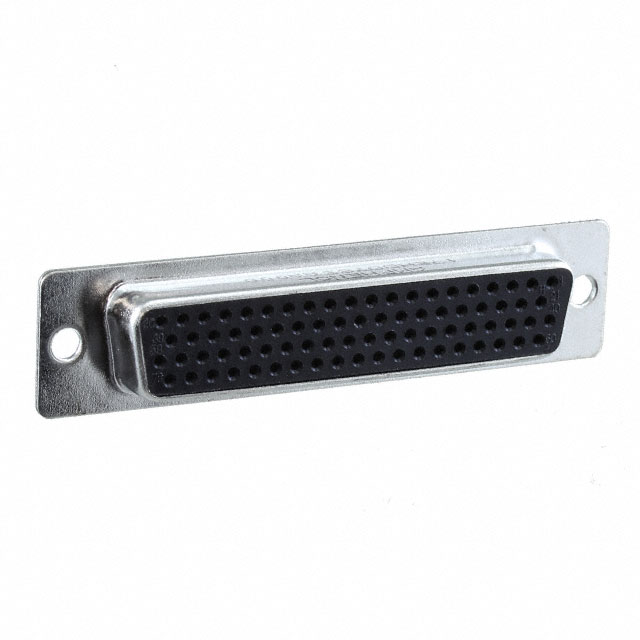

17EHD078 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB HD PLUG 78P SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Dielectric Material | Voltage Rating | Contact Form | Mounting Type | Current Rating (Amps) | Shell Material, Finish | Flange Feature | Number of Positions | Connector Style | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Material Flammability Rating | Features | Connector Type | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | Black | Copper Alloy | Glass Filled Nylon Polyamide (PA) | 125 VDC | Stamped | Free Hanging (In-Line) | 3 A | Nickel Plated Steel | Housing/Shell (Unthreaded) | 78 | D-Sub High Density | Signal | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Grounding Indents | Plug Male Pins | ||
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | Black | Copper Alloy | Glass Filled Nylon Polyamide (PA) | 125 VDC | Stamped | Through Hole | 3 A | Nickel Plated Steel | Housing/Shell (Unthreaded) | 78 | D-Sub High Density | Signal | 30 Áin | 0.76 Ám | Gold | UL94 V-0 | Receptacle Female Sockets | Solder | ||
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | Black | Copper Alloy | Glass Filled Nylon Polyamide (PA) | 125 VDC | Stamped | Free Hanging (In-Line) | 3 A | Nickel Plated Steel | Housing/Shell (Unthreaded) | 78 | D-Sub High Density | Signal | Gold | UL94 V-0 | Receptacle Female Sockets | Flash |
