AO640 Series

Catalog

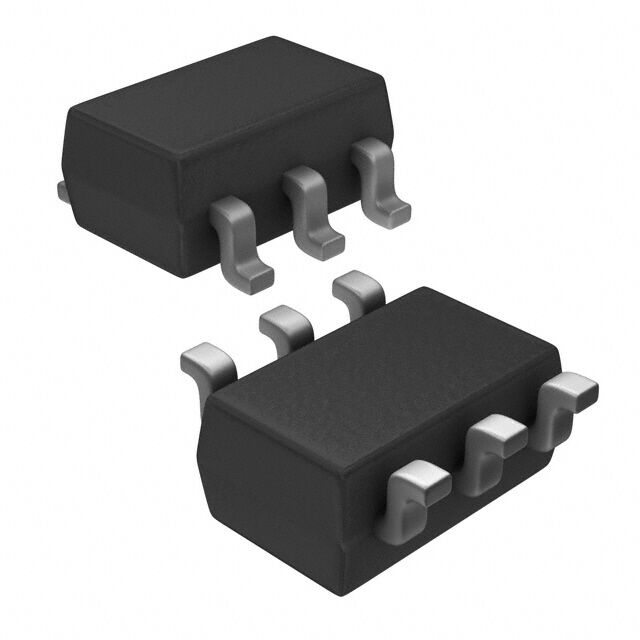

MOSFET N-CH 20V 8.6A 6TSOP

Part	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	FET Type	Power Dissipation (Max)	Package / Case	Drain to Source Voltage (Vdss)	Technology	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs
Alpha & Omega Semiconductor Inc. AO6404	1.8 V 10 V	12 V	1810 pF	150 °C	-55 °C	1 V	17.9 nC	Surface Mount	8.6 A	6-TSOP	N-Channel	2 W	SC-74 SOT-457	20 V	MOSFET (Metal Oxide)
Alpha & Omega Semiconductor Inc. AO6402A	4.5 V 10 V	20 V		150 °C	-55 °C	2.5 V		Surface Mount	7.5 A	6-TSOP	N-Channel	2 W	SC-74 SOT-457	30 V	MOSFET (Metal Oxide)	17 nC	820 pF	27 mOhm
Alpha & Omega Semiconductor Inc. AO6401	2.5 V 10 V	12 V		150 °C	-55 °C	1.3 V		Surface Mount	5 A	6-TSOP	P-Channel	2 W	SC-74 SOT-457	30 V	MOSFET (Metal Oxide)	17 nC	780 pF	47 mOhm
