RK73B2H Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

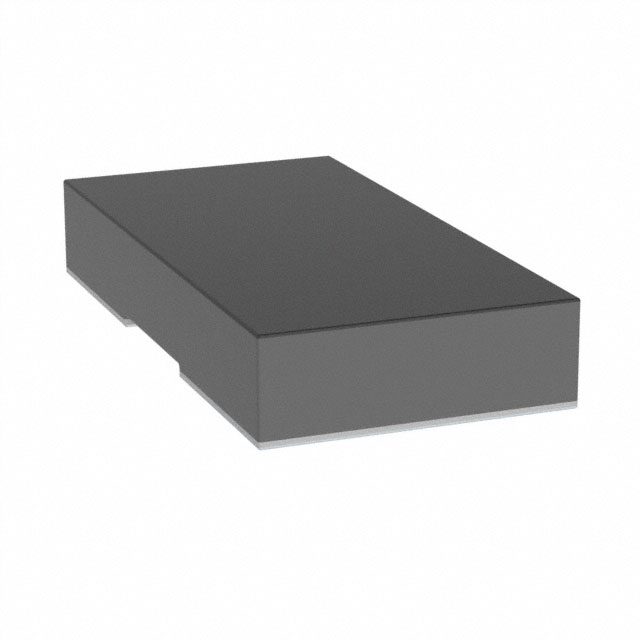

RES 20K OHM 2% 3/4W 2010

...

Part	Supplier Device Package	Ratings	Features	Power (Watts)	Power (Watts)	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Composition	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KOA Speer Electronics, Inc. RK73B2HTTE203G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	20 kOhms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE161G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	160 Ohms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE221J	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	220 Ohms	155 C	-55 C	200 ppm/°C	Thick Film	5 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE6R8J	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	6.8 Ohms	155 C	-55 C	200 ppm/°C	Thick Film	5 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE512J	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	5.1 kOhms	155 C	-55 C	200 ppm/°C	Thick Film	5 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE104G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	100 kOhms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE472G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	4.7 kOhms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE245G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	2.4 MOhms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE335G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	3.3 MOhms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
KOA Speer Electronics, Inc. RK73B2HTTE183G	2010	AEC-Q200	Automotive AEC-Q200	3/4W	0.75 W	18 kOhms	155 C	-55 C	200 ppm/°C	Thick Film	2 %	2010 (5025 Metric)	0.7 mm	0.028 "	2	5 mm	0.098 in	0.197 in	2.5 mm
