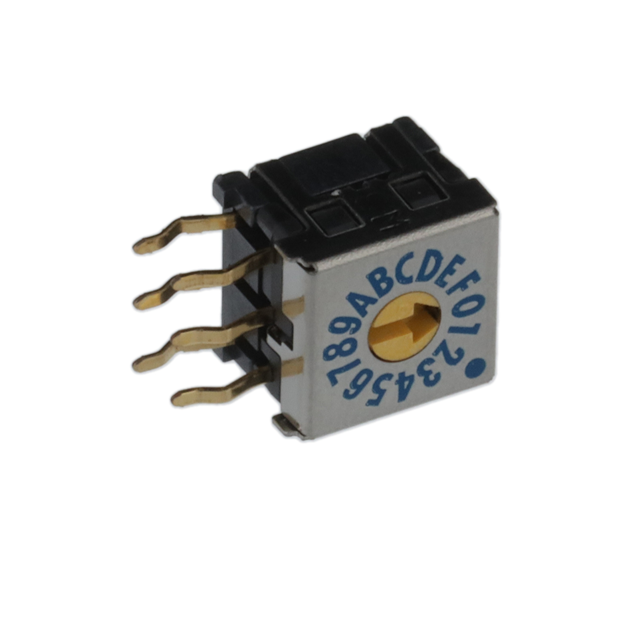

DRR7016 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH ROTARY DIP HEX 0.03A 15V
| Part | Height Above Board | Height Above Board | Actuator Level | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Current Rating (Amps) | Features | Actuator Type | Contact Finish | Mounting Type | Pitch [x] | Pitch | Pitch [x] | Mechanical Life | Number of Positions | Length [x] | Length [x] | Washable | Voltage Rating | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 7.9 mm | 0.311 in | Flush Recessed | PC Pin | -25 °C | 85 °C | Hexadecimal | 30 mA | Process Sealed | Rotary for Tool | Gold | Through Hole Right Angle | 0.1 in | Full | 2.54 mm | 20000 Cycles | 16 | 7.5 mm | 0.295 in | 15 VDC | 20000 Steps |
