093604 Series

Manufacturer: Molex

Catalog

BOX ALUM GRAY 14.17"L X 4.72"W

...

Part	Container Type	Features	Area (L x W)	Area (L x W)	Material	Thickness [custom]	Thickness [custom]	Ratings	Height [diameter]	Height [diameter]	Design	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]	Thickness	Thickness	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Molex 0936040125	Box	PCB Supports	432 cm²	67 in²	Aluminum Metal	4.5 mm	0.177 in	IP66 IP69	80 mm	3.15 in	Cover Included	Gray	4.724 in	360 mm	14.173 "	120 mm
Molex 0936040107	Box	PCB Supports	200 cm²	31 in²	Aluminum Metal			IP66 IP69			Cover Included	Gray	3.937 in	200 mm	7.874 in		100 mm	81 mm	3.189 in	0.157 in	4 mm
Molex 0936040170	Box	PCB Supports	200 cm²	31 in²	Aluminum Metal			IP66 IP69	80 mm	3.15 in	Cover Included	Gray	3.15 in	250 mm	9.843 "	80 mm				0.157 in	4 mm

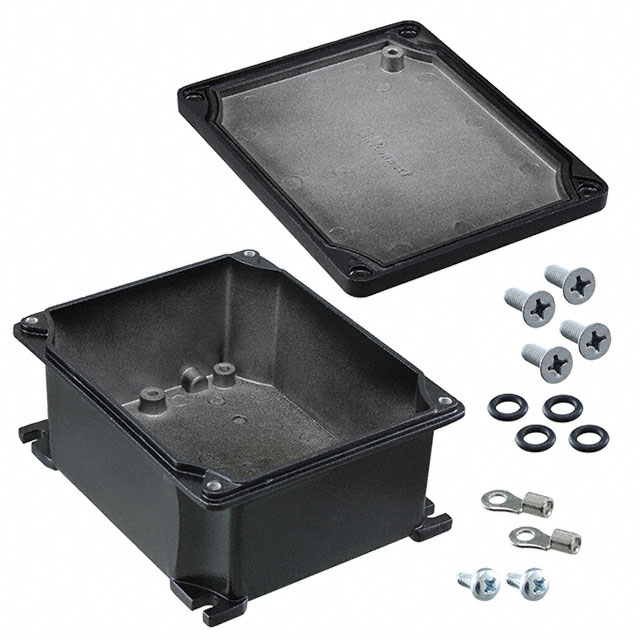

Molex 0936040018	Box	Mounting Flange PCB Supports			Aluminum Metal			IP66 IP69			Cover Included	Black	4.488 " 114 mm		5.472 in 139 mm			62 mm	2.441 in	0.217 in	5.5 mm	24.6 in²	159 cm²
Molex 0936040250	Box	PCB Supports			Aluminum Metal			IP66 IP69			Cover Included	Black	2.52 "	98 mm	3.858 "	64 mm		35 mm	1.378 in	0.118 in	3 mm			62.7 cm²	9.72 in²
Molex 0936040327
Molex 0936040157	Box	PCB Supports	60 cm²	9.3 in²	Aluminum Metal			IP66 IP69			Cover Included	Gray	2.953 in	80 mm	3.15 in	75 mm		57 mm	2.244 "	0.157 in	4 mm
Molex 0936040014	Box	Mounting Flange PCB Supports	102 cm²	15.8 in²	Aluminum Metal			IP66 IP69			Cover Included	Gray	3.976 in	101 mm	3.976 "	101 mm		57.99 mm	2.283 in	0.197 "	5 mm
Molex 0936040105	Box	PCB Supports			Aluminum Metal	4.5 mm	0.177 in	IP66 IP69	80 mm	3.15 in	Cover Included	Gray	4.724 in	122 mm	4.803 in	120 mm
Molex 0936040319
