SA1U Series
Manufacturer: IDEC
Beta
⌘K

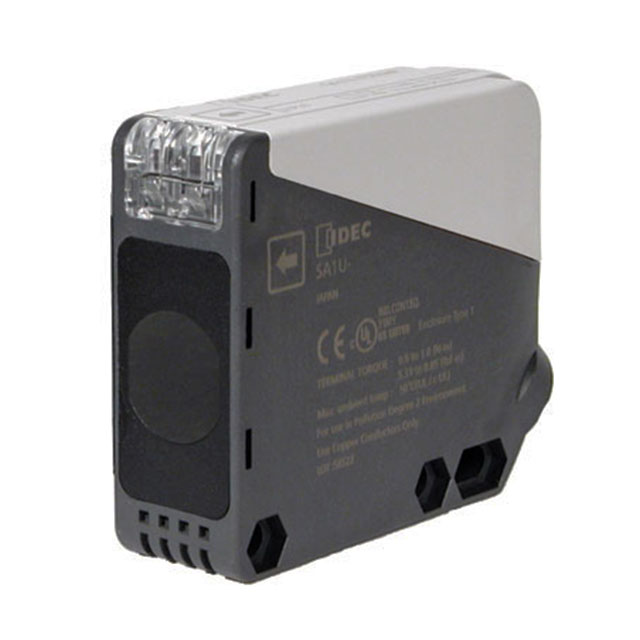

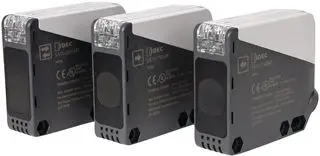

PHOTOELECTRIC SENSOR, SA1U SERIES, 50 M, THROUGH-BEAM, NPN / PNP, 10 V TO 30 V, NO TIME DELAY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Distance | Sensing Distance | Ingress Protection | Adjustment Type | Light Source | Response Time | Connection Method | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | -25 °C | 60 °C | 50 m | 164.04 ft | IP67 | Adjustable | Infrared (870nm) | 1 ms | Terminal Block | NPN/PNP - Open Collector | 12 VDC | 24 V | Through-Beam |
 IDEC | -25 °C | 60 °C | 7 m | 275.591 in | IP67 | Adjustable | Red (660nm) | 20 ms | Terminal Block | SPDT | 12 VDC 24 V | 240 VDC 240 VAC | Polarized Retroreflective |
 IDEC | -25 °C | 60 °C | 50 m | 164.04 ft | IP67 | Adjustable | Infrared (870nm) | 1 ms | Terminal Block | NPN/PNP - Open Collector | 12 VDC | 24 V | Through-Beam |
