IMSA-115 Series

Catalog

CONN FFC BOTTOM 32POS 0.5MM R/A

Part	Voltage Rating	Connector/Contact Type	Mounting Type	Termination	Housing Material	Material Flammability Rating	Number of Positions	Contact Finish	FFC, FCB Thickness	Contact Material	Flat Flex Type	Pitch	Features	Cable End Type	Height Above Board	Current Rating	Housing Color	Contact Finish Thickness

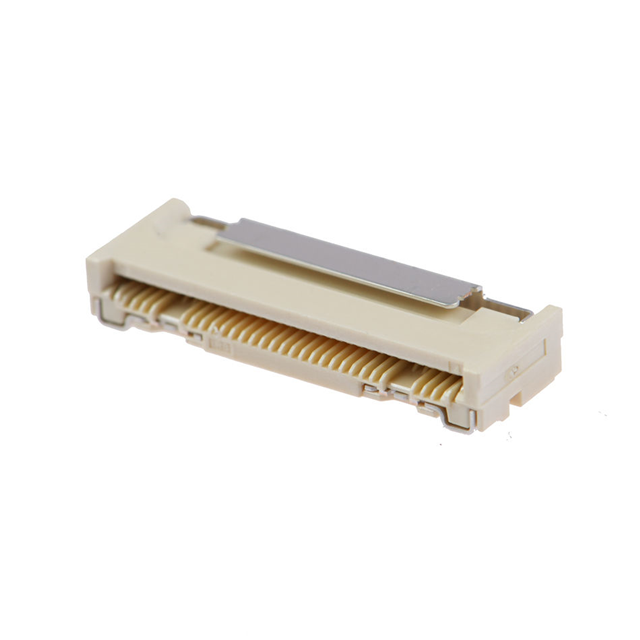

IRISO USA Inc. IMSA-11501S-32B-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	32	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A	Black

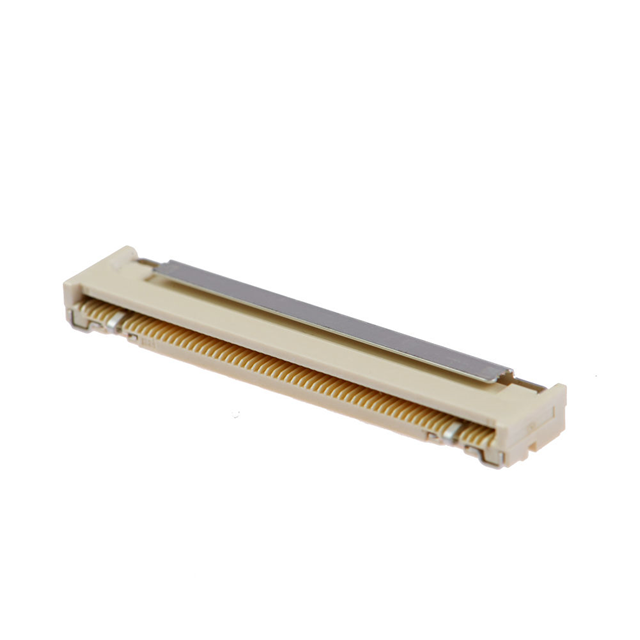

IRISO USA Inc. IMSA-11501S-60A-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	60	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A

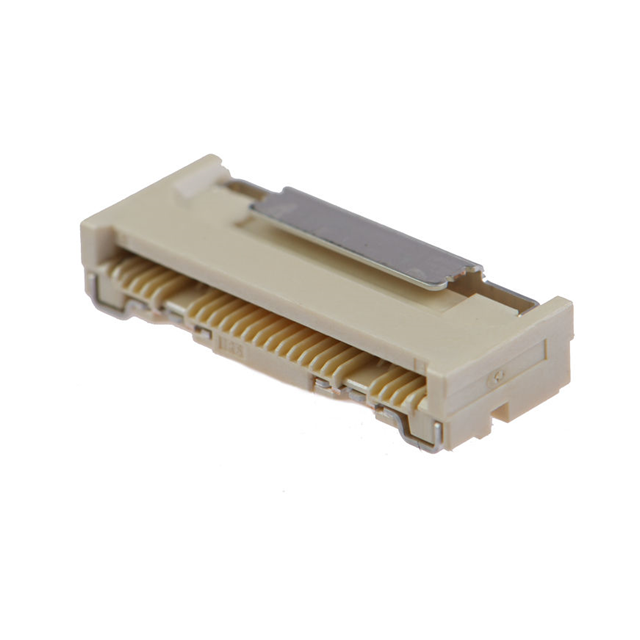

IRISO USA Inc. IMSA-11501S-25B-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	25	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A	Black
IRISO USA Inc. IMSA-11501S-15C-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	15	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A		3.94 µin

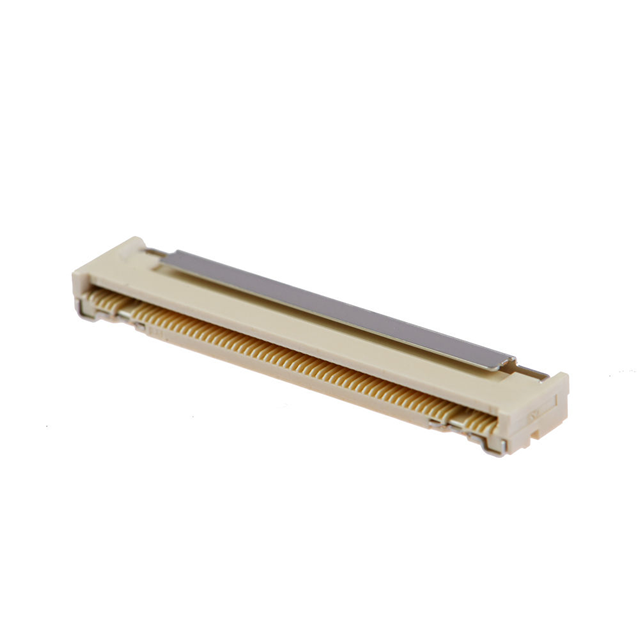

IRISO USA Inc. IMSA-11501S-60B-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	60	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A	Black

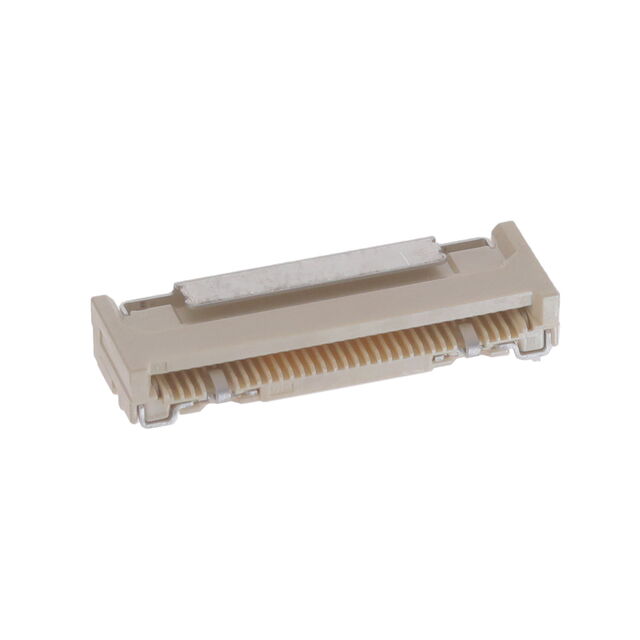

IRISO USA Inc. IMSA-11501S-32A-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	32	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A

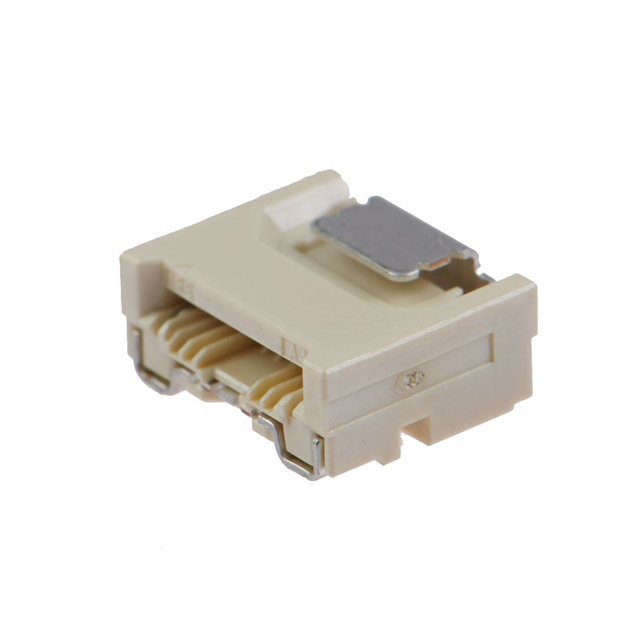

IRISO USA Inc. IMSA-11501S-08D-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	8	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A		3.94 µin

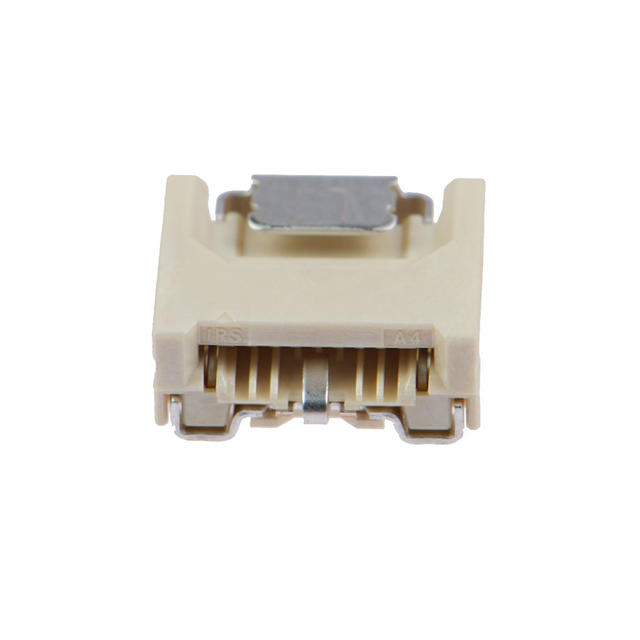

IRISO USA Inc. IMSA-11501S-08C-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	8	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A		3.94 µin
IRISO USA Inc. IMSA-11501S-45A-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	45	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A
IRISO USA Inc. IMSA-11501S-45B-GFN1	50 V	Bottom Contacts	Right Angle Surface Mount	Solder	LCP Liquid Crystal Polymer	UL94 V-0	45	Gold	0.3 mm	Copper Alloy	FFC FPC	0.02 in	Solder Retention	Notched	0.134 in	0.5 A	Black
