A00-216 Series
Manufacturer: EDAC Inc.
Beta
⌘K
MODULAR CONNECTOR, MODULAR JACK, 2 X 1 (STACKED), 8P8C, CAT5, THROUGH HOLE MOUNT
| Part | Housing Material | Contact Finish Thickness | Tab Direction | Contact Finish | Ratings | LED Color | Number of Rows | Number of Ports | Mounting Type | Number of Positions | Connector Type | Number of Contacts | Features | Termination | Contact Material | Orientation Angle | Orientation Direction | Shielding | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Glass Filled PBT Polybutylene Terephthalate Polyester | 30 µin | Down Up | Gold | Cat5 | Does Not Contain LED | 2 | 2 | Through Hole | 8 | Ethernet Jack RJ45 | 8 | Board Lock | Solder | Phosphor Bronze | 90 ° | Right | Shielded | ||

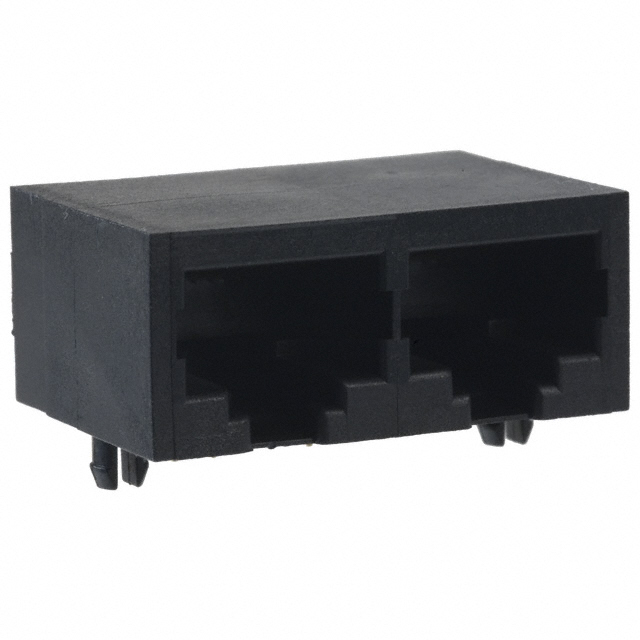

 EDAC Inc. | Glass Filled PBT Polybutylene Terephthalate Polyester | 30 µin | Down | Gold | Cat5 | Does Not Contain LED | 1 | 2 | Through Hole | 8 | Ethernet Jack RJ45 | 8 | Board Lock | Solder | Phosphor Bronze | 90 ° | Right | Unshielded | ||
EDAC Inc. | Glass Filled PBT Polybutylene Terephthalate Polyester | 0 | Down Up | Gold | Cat5 | Does Not Contain LED | 2 | 2 | Through Hole | 8 | Ethernet Jack RJ45 | 8 | Board Lock | Solder | Phosphor Bronze | 90 ° | Right | Shielded | Flash | Flash |

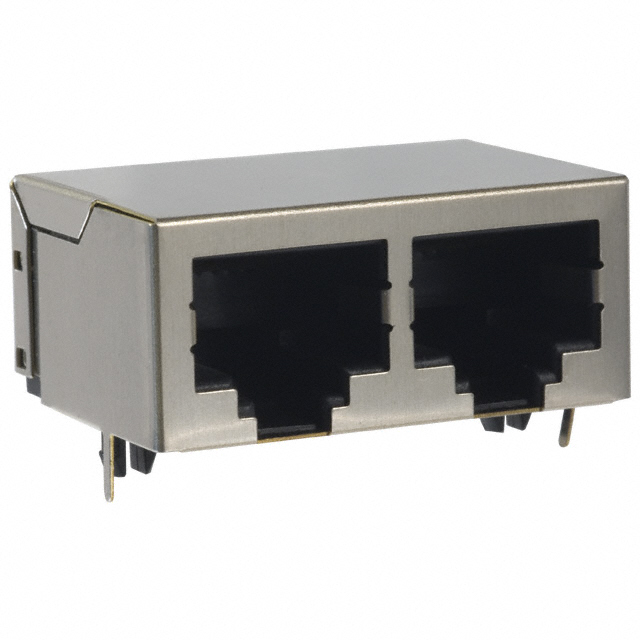

 EDAC Inc. | Glass Filled PBT Polybutylene Terephthalate Polyester | 30 µin | Down | Gold | Cat5 | Does Not Contain LED | 1 | 2 | Through Hole | 8 | Ethernet Jack RJ45 | 8 | Board Lock | Solder | Phosphor Bronze | 90 ° | Right | Shielded |
