MXB9733 Series

Catalog

FAN BLOWER 97X33MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Width	Approval Agency	Air Flow	Air Flow	Noise	Static Pressure	Static Pressure	RPM	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Features	Voltage - Rated	Termination	Bearing Type	Weight	Weight
Mechatronics Fan Group MXB9733M12B6-BSR	Polybutylene Terephthalate (PBT)	0.5 A	33 mm	CE cUL TUV UL	24 CFM	0.672 mł/min	51 dB(A)	174.4 Pa	0.7 in H2O	2800 RPM	Rectangular/Rounded	97 mm	94.4 mm	Blower	PWM Control Thermal Overload Protector (TOP)	12 VDC	3 Wire Leads	Ball	180.08 g	0.397 lb
Mechatronics Fan Group MXB9733H24B-BSR-PC	Polybutylene Terephthalate (PBT)	0.55 A	33 mm	CE cUL TUV UL	28.5 CFM	0.798 mł/min	55 dB(A)	264 Pa	1.06 in H2O	3300 RPM	Rectangular/Rounded	97 mm	94.4 mm	Blower	Parylene Coating Thermal Overload Protector (TOP)	24 VDC	2 Wire Leads	Ball	180.08 g	0.397 lb

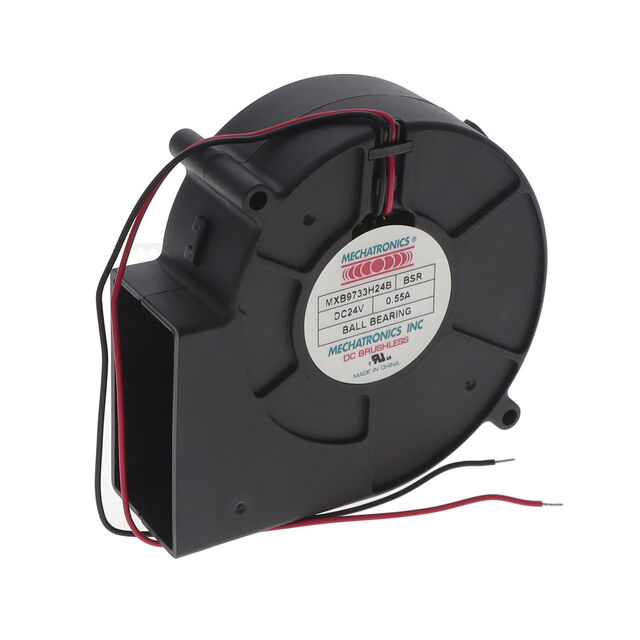

Mechatronics Fan Group MXB9733H24B-BSR	Polybutylene Terephthalate (PBT)	0.55 A	33 mm	CE cUL TUV UL	28.5 CFM	0.798 mł/min	55 dB(A)	264 Pa	1.06 in H2O	3300 RPM	Rectangular/Rounded	97 mm	94.4 mm	Blower	Thermal Overload Protector (TOP)	24 VDC	2 Wire Leads	Ball	180.08 g	0.397 lb
