M24308/23 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
D-SUB MIL SPEC CONNECTORS DEMM9SM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Flange Feature | Number of Rows [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Contact Type | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Number of Positions | Termination | Connector Style | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 1 | DE E | Yellow Chromate Plated Zinc | Steel | 9 | Solder | D-Sub | ||||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 1 | DE E | 9 | Solder | D-Sub | Steel Yellow Chromate Plated Cadmium | |||||
 Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 1 | DE E | Yellow Chromate Plated Zinc | Steel | 9 | Solder | D-Sub | ||||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | Yellow Chromate Plated Zinc | Steel | 37 | Solder | D-Sub | 4 | DC C | ||||

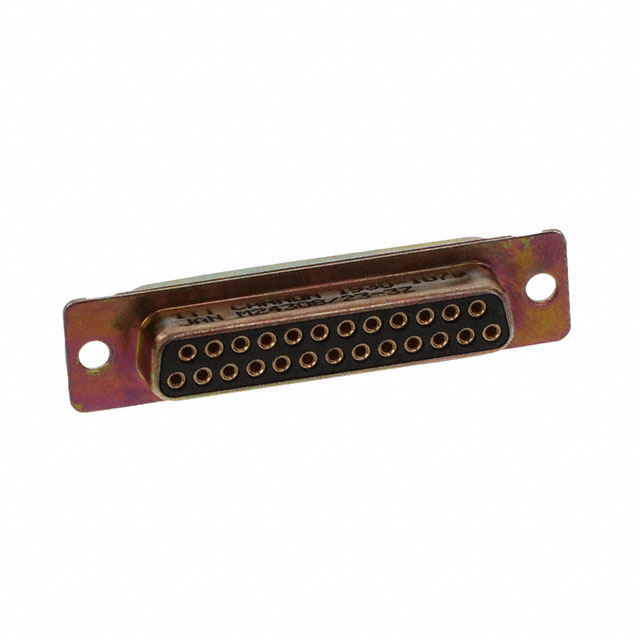

 Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | Yellow Chromate Plated Zinc | Steel | 25 | Solder | D-Sub | B DB | 3 | ||||
 Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 3 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 5 | D DD | Yellow Chromate Plated Zinc | Steel | 50 | Solder | D-Sub | ||||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 25 | Solder | D-Sub | Steel Yellow Chromate Plated Cadmium | B DB | 3 | |||||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 3 | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 5 | D DD | 50 | Solder | D-Sub | Steel Yellow Chromate Plated Cadmium | |||||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 1 | DE E | 9 | Solder | D-Sub | Steel Yellow Chromate Plated Cadmium | |||||
Cinch Connectivity Solutions | -65 ░C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | Green | Phosphor Bronze | Housing/Shell (Unthreaded) | 2 | Panel Mount Through Hole | 50 µin | 1.27 µm | Receptacle Female Sockets | Gold | Signal | 5 A | 25 | Solder | D-Sub | Steel Yellow Chromate Plated Cadmium | B DB | 3 |
